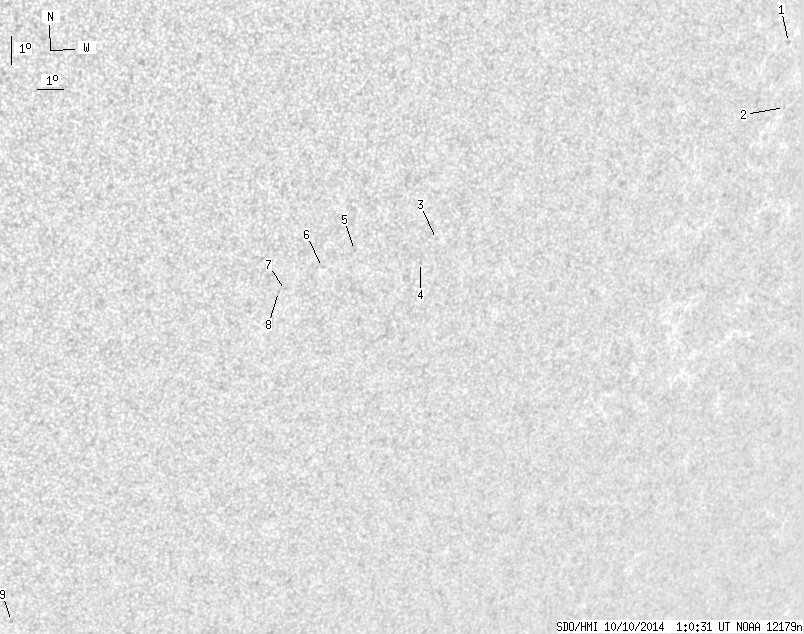

SDO HMI 2014-10-10 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.11 | 0.00 | 6.16 | -18.69 | 99.32 | 33.90 | 231.67 | 0.6769 | -287.3 | -151.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 01:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.39 | -13.29 | 110.78 | 45.36 | 246.38 | 0.7580 | 502.0 | 429.0 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -15.38 | 111.15 | 45.72 | 243.99 | 0.7704 | 422.0 | 351.1 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -18.69 | 97.85 | 32.42 | 231.40 | 0.6522 | -631.0 | -511.8 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -19.42 | 97.41 | 31.98 | 230.12 | 0.6533 | -588.0 | -483.0 | |
| 0.00 | 0.96 | 0.00 | 0.61 | -18.87 | 94.86 | 29.43 | 228.52 | 0.6229 | -614.0 | -521.0 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -19.37 | 93.79 | 28.37 | 226.87 | 0.6165 | -142.0 | -218.6 | |
| 0.00 | 0.35 | 0.00 | 0.22 | -20.07 | 92.59 | 27.17 | 224.80 | 0.6109 | -535.0 | -477.0 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -20.09 | 92.34 | 26.92 | 224.52 | 0.6087 | -469.0 | -496.6 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -31.37 | 84.96 | 19.53 | 205.26 | 0.6712 | -531.0 | -446.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
