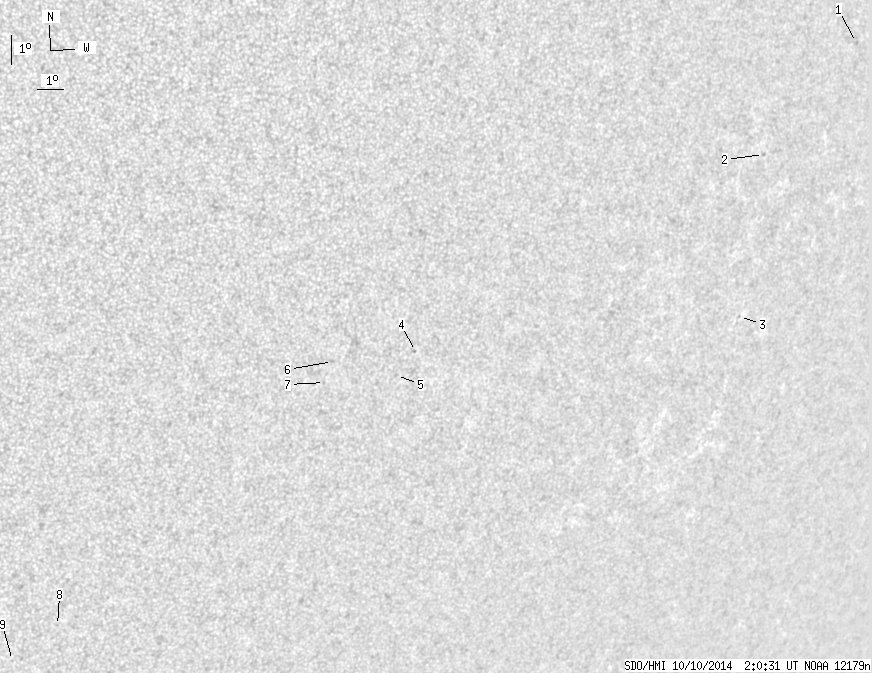

SDO HMI 2014-10-10 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.16 | 0.00 | 7.20 | -18.07 | 101.96 | 37.09 | 234.28 | 0.7098 | -288.8 | -123.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.84 | 0.00 | 1.48 | -10.10 | 114.33 | 49.46 | 251.95 | 0.7891 | 25.0 | 82.3 | |
| 0.00 | 1.40 | 0.00 | 1.07 | -13.31 | 110.81 | 45.94 | 246.62 | 0.7642 | 508.0 | 427.3 | |
| 0.00 | 1.14 | 0.00 | 0.92 | -18.54 | 111.29 | 46.41 | 240.59 | 0.7906 | 460.0 | 391.8 | |
| 0.00 | 0.53 | 0.00 | 0.35 | -18.70 | 97.94 | 33.07 | 231.92 | 0.6589 | -578.0 | -538.7 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -19.46 | 97.39 | 32.52 | 230.52 | 0.6590 | -625.0 | -433.5 | |
| 0.00 | 1.49 | 0.00 | 0.95 | -18.84 | 94.89 | 30.01 | 229.10 | 0.6286 | -756.0 | -617.1 | |
| 0.00 | 0.61 | 0.00 | 0.39 | -19.53 | 94.73 | 29.86 | 228.09 | 0.6327 | -553.0 | -447.6 | |
| 0.00 | 1.14 | 0.00 | 0.73 | -27.47 | 86.67 | 21.79 | 211.01 | 0.6417 | -623.0 | -497.1 | |
| 0.00 | 1.05 | 0.00 | 0.68 | -28.67 | 85.28 | 20.40 | 208.38 | 0.6459 | -457.0 | -362.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
