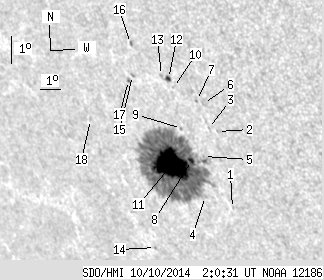

SDO HMI 2014-10-10 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.98 | 364.82 | 46.71 | 299.51 | -20.57 | 18.54 | -46.34 | 121.77 | 0.7989 | 805.5 | 221.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.28 | -21.96 | 20.76 | -44.11 | 124.52 | 0.7858 | -480.0 | -436.5 | |
| 0.00 | 0.70 | 0.00 | 0.54 | -19.38 | 21.04 | -43.83 | 121.72 | 0.7703 | 350.0 | 323.2 | |
| 0.00 | 0.70 | 0.00 | 0.55 | -19.31 | 20.67 | -44.21 | 121.43 | 0.7735 | 618.0 | 429.6 | |
| 0.00 | 1.05 | 0.00 | 0.85 | -21.65 | 19.66 | -45.22 | 123.57 | 0.7940 | 226.0 | 189.8 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -20.28 | 20.10 | -44.78 | 122.25 | 0.7835 | 709.0 | 631.8 | |
| 0.00 | 1.31 | 0.00 | 1.01 | -18.48 | 20.72 | -44.15 | 120.50 | 0.7690 | -322.0 | -386.1 | |
| 0.00 | 0.88 | 0.00 | 0.68 | -18.41 | 20.44 | -44.44 | 120.26 | 0.7713 | -408.0 | -411.0 | |
| 2.63 | 346.00 | 2.11 | 284.36 | -20.46 | 19.48 | -45.39 | 122.13 | 0.7899 | 1018.5 | 229.6 | |
| 0.00 | 1.23 | 0.00 | 0.98 | -19.41 | 19.42 | -45.46 | 120.89 | 0.7856 | 400.0 | 485.6 | |
| 0.00 | 0.26 | 0.00 | 0.21 | -18.06 | 19.53 | -45.35 | 119.37 | 0.7784 | 502.0 | 533.3 | |
| 52.33 | -8.00 | 43.00 | -8.00 | -20.67 | 18.48 | -46.40 | 121.86 | 0.7999 | 1049.9 | 999999 | |
| 1.67 | 2.98 | 1.31 | 2.34 | -17.77 | 19.40 | -45.48 | 118.98 | 0.7784 | 622.2 | 470.0 | |
| 0.00 | 1.31 | 0.00 | 1.04 | -17.70 | 19.10 | -45.77 | 118.75 | 0.7808 | 333.0 | 266.1 | |
| 0.00 | 0.79 | 0.00 | 0.70 | -23.64 | 16.38 | -48.50 | 124.10 | 0.8307 | 514.0 | 484.9 | |
| 0.00 | 1.40 | 0.00 | 1.14 | -17.81 | 17.74 | -47.14 | 118.22 | 0.7942 | 402.0 | 267.0 | |
| 0.00 | 1.75 | 0.00 | 1.40 | -16.76 | 18.00 | -46.87 | 117.10 | 0.7873 | -616.0 | -561.4 | |
| 0.35 | 1.31 | 0.29 | 1.07 | -18.00 | 17.49 | -47.39 | 118.31 | 0.7973 | -383.0 | -390.1 | |
| 0.00 | 1.75 | 0.00 | 1.53 | -19.47 | 15.08 | -49.79 | 118.90 | 0.8246 | -134.0 | -181.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
