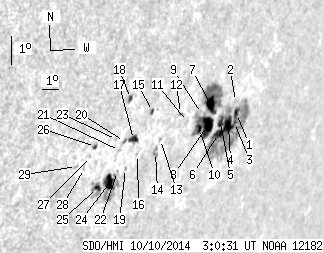

SDO HMI 2014-10-10 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.34 | 264.73 | 78.32 | 281.77 | -15.31 | 123.19 | 58.86 | 248.98 | 0.8856 | 242.4 | 80.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.68 | 113.62 | 4.18 | 128.50 | -14.95 | 125.46 | 61.14 | 250.06 | 0.9020 | 365.8 | 66.6 | |
| 0.00 | 1.40 | 0.00 | 1.58 | -14.54 | 125.21 | 60.88 | 250.42 | 0.8993 | 219.0 | 169.8 | |
| 0.26 | -1.00 | 0.30 | -1.00 | -15.23 | 125.47 | 61.15 | 249.75 | 0.9026 | 218.7 | 999999 | |
| 11.40 | -1.00 | 12.84 | -1.00 | -15.29 | 125.12 | 60.79 | 249.59 | 0.9002 | 444.7 | 999999 | |
| 3.77 | -1.00 | 4.17 | -1.00 | -15.14 | 124.53 | 60.21 | 249.59 | 0.8957 | 656.0 | 999999 | |
| 5.79 | -1.00 | 6.43 | -1.00 | -15.49 | 124.58 | 60.25 | 249.22 | 0.8967 | 668.7 | 999999 | |
| 9.64 | 80.39 | 10.29 | 85.80 | -14.48 | 123.61 | 59.29 | 250.04 | 0.8875 | 735.0 | 362.0 | |
| 16.39 | -7.00 | 17.65 | -7.00 | -15.16 | 123.73 | 59.41 | 249.34 | 0.8899 | 672.5 | 999999 | |
| 0.00 | 1.40 | 0.00 | 1.48 | -14.72 | 123.17 | 58.85 | 249.65 | 0.8847 | 619.0 | 605.1 | |
| 3.33 | -7.00 | 3.54 | -7.00 | -15.21 | 123.27 | 58.94 | 249.15 | 0.8865 | 734.4 | 999999 | |
| 0.00 | 0.26 | 0.00 | 0.27 | -14.90 | 122.41 | 58.09 | 249.23 | 0.8793 | 338.0 | 357.3 | |
| 0.00 | 1.75 | 0.00 | 1.78 | -14.60 | 121.88 | 57.55 | 249.40 | 0.8744 | 660.0 | 577.8 | |
| 0.00 | 0.96 | 0.00 | 0.96 | -15.34 | 121.03 | 56.71 | 248.32 | 0.8695 | -114.0 | -65.8 | |
| 0.00 | 4.73 | 0.00 | 4.72 | -15.75 | 120.92 | 56.60 | 247.84 | 0.8696 | -649.0 | -358.5 | |
| 0.96 | 2.37 | 0.93 | 2.28 | -14.38 | 120.20 | 55.87 | 249.12 | 0.8603 | -517.1 | -413.1 | |
| 0.00 | 0.35 | 0.00 | 0.34 | -15.71 | 119.90 | 55.57 | 247.54 | 0.8612 | -245.0 | -195.2 | |
| 4.21 | 6.93 | 4.01 | 6.60 | -15.20 | 119.47 | 55.14 | 247.97 | 0.8563 | -532.9 | -312.5 | |
| 1.14 | 2.81 | 1.06 | 2.60 | -13.84 | 118.80 | 54.48 | 249.28 | 0.8470 | -592.5 | -447.4 | |
| 0.00 | 0.96 | 0.00 | 0.93 | -16.12 | 119.40 | 55.08 | 246.92 | 0.8583 | -160.0 | -134.5 | |
| 0.00 | 2.10 | 0.00 | 1.98 | -15.22 | 118.99 | 54.66 | 247.78 | 0.8523 | -638.0 | -501.2 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -15.49 | 118.82 | 54.50 | 247.42 | 0.8517 | -400.0 | -360.6 | |
| 0.00 | 0.88 | 0.00 | 0.83 | -16.17 | 118.99 | 54.66 | 246.71 | 0.8550 | -250.0 | -217.9 | |
| 0.00 | 1.05 | 0.00 | 0.98 | -15.11 | 118.52 | 54.19 | 247.74 | 0.8481 | -459.0 | -358.4 | |
| 10.26 | 26.91 | 9.68 | 25.51 | -16.50 | 118.69 | 54.36 | 246.25 | 0.8535 | -566.9 | -33.8 | |
| 2.63 | 10.43 | 2.45 | 9.70 | -16.60 | 118.09 | 53.76 | 245.91 | 0.8488 | -742.7 | -578.0 | |
| 0.88 | 2.10 | 0.79 | 1.91 | -15.23 | 117.45 | 53.13 | 247.23 | 0.8393 | -512.7 | -456.3 | |
| 0.00 | 0.26 | 0.00 | 0.24 | -15.54 | 117.31 | 52.98 | 246.83 | 0.8389 | -543.0 | -480.3 | |
| 0.00 | 0.79 | 0.00 | 0.71 | -15.91 | 117.13 | 52.81 | 246.35 | 0.8385 | -621.0 | -519.9 | |
| 0.00 | 1.58 | 0.00 | 1.41 | -15.80 | 116.68 | 52.36 | 246.30 | 0.8342 | -527.0 | -493.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
