SDO HMI 2014-10-10 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.85 | 0.00 | 7.96 | 13.57 | 92.85 | 29.07 | 288.15 | 0.4993 | -84.4 | -159.1 | |
|
previous
or next observation for the same group /

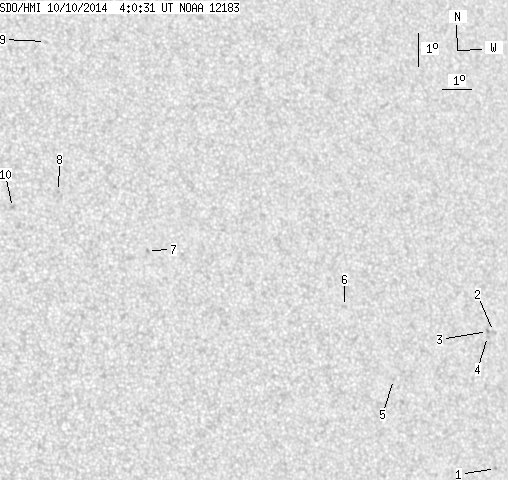

back to the solar disc SDO HMI 2014-10-10 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.96 | 0.00 | 0.58 | 7.94 | 98.40 | 34.63 | 274.96 | 0.5671 | -702.0 | -606.9 | |
| 0.00 | 1.49 | 0.00 | 0.90 | 12.04 | 98.84 | 35.06 | 282.11 | 0.5768 | -602.0 | -497.9 | |
| 0.00 | 1.67 | 0.00 | 1.01 | 12.05 | 98.62 | 34.84 | 282.17 | 0.5737 | -797.0 | -666.6 | |
| 0.00 | 1.58 | 0.00 | 0.95 | 11.90 | 98.59 | 34.82 | 281.92 | 0.5732 | -648.0 | -525.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 10.81 | 95.02 | 31.24 | 280.61 | 0.5204 | -662.0 | -499.5 | |
| 0.00 | 2.19 | 0.00 | 1.26 | 13.10 | 93.56 | 29.79 | 285.44 | 0.5040 | -811.0 | -574.4 | |
| 0.00 | 1.05 | 0.00 | 0.57 | 15.11 | 87.01 | 23.23 | 293.17 | 0.4160 | 909.0 | 764.3 | |
| 0.00 | 0.88 | 0.00 | 0.47 | 17.02 | 84.24 | 20.47 | 300.11 | 0.3882 | 826.0 | 692.5 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 21.64 | 84.42 | 20.64 | 309.73 | 0.4278 | 728.0 | 517.2 | |
| 0.00 | 1.84 | 0.00 | 0.98 | 16.59 | 82.67 | 18.89 | 300.88 | 0.3631 | 915.0 | 710.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
