SDO HMI 2014-10-10 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.25 | 0.00 | 8.03 | -13.50 | 60.67 | -2.02 | 174.51 | 0.3413 | 168.9 | 107.1 | |
|
previous
or next observation for the same group /

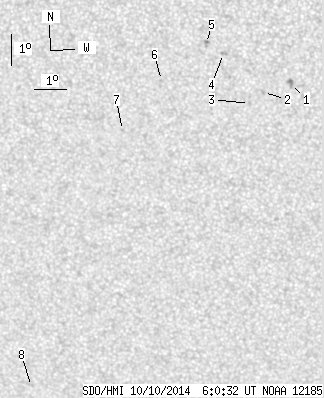

back to the solar disc SDO HMI 2014-10-10 06:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.95 | 0.00 | 2.07 | -13.27 | 62.67 | -0.02 | 179.96 | 0.3349 | 1104.0 | 888.9 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -13.55 | 61.83 | -0.85 | 177.57 | 0.3400 | 732.0 | 571.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -13.90 | 61.40 | -1.28 | 176.39 | 0.3461 | 744.0 | 541.6 | |
| 0.00 | 2.89 | 0.00 | 1.51 | -12.32 | 60.61 | -2.07 | 173.67 | 0.3211 | -876.0 | -659.0 | |
| 0.00 | 2.54 | 0.00 | 1.33 | -12.00 | 60.10 | -2.59 | 171.96 | 0.3170 | -967.0 | -807.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -13.18 | 58.70 | -3.99 | 168.47 | 0.3401 | -822.0 | -600.1 | |
| 0.00 | 0.96 | 0.00 | 0.51 | -14.79 | 57.45 | -5.23 | 166.18 | 0.3702 | 786.0 | 502.7 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -23.32 | 54.17 | -8.51 | 164.56 | 0.5123 | 650.0 | 578.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
