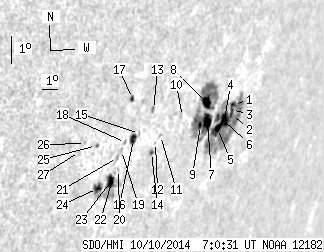

SDO HMI 2014-10-10 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.95 | 249.70 | 67.61 | 285.67 | -15.26 | 123.19 | 61.05 | 249.67 | 0.9014 | 180.8 | 91.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.49 | 187.80 | 1.83 | 223.50 | -14.74 | 125.52 | 63.39 | 250.88 | 0.9168 | 271.9 | 161.6 | |
| 0.79 | -1.00 | 0.97 | -1.00 | -15.06 | 125.55 | 63.42 | 250.55 | 0.9176 | 100.1 | 999999 | |
| 0.61 | -1.00 | 0.76 | -1.00 | -14.89 | 125.46 | 63.33 | 250.70 | 0.9167 | 117.6 | 999999 | |
| 8.15 | -1.00 | 9.93 | -1.00 | -15.18 | 125.13 | 62.99 | 250.31 | 0.9150 | 393.0 | 999999 | |
| 8.42 | -1.00 | 10.12 | -1.00 | -15.43 | 124.78 | 62.65 | 249.96 | 0.9131 | 556.6 | 999999 | |
| 1.05 | -1.00 | 1.25 | -1.00 | -14.99 | 124.55 | 62.42 | 250.36 | 0.9108 | 593.5 | 999999 | |
| 11.22 | -1.00 | 13.07 | -1.00 | -15.12 | 123.95 | 61.82 | 250.06 | 0.9070 | 688.7 | 999999 | |
| 7.80 | -1.00 | 8.93 | -1.00 | -14.48 | 123.57 | 61.44 | 250.65 | 0.9031 | 768.8 | 999999 | |
| 2.10 | -1.00 | 2.42 | -1.00 | -15.21 | 123.53 | 61.40 | 249.86 | 0.9042 | 847.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.86 | -14.79 | 122.18 | 60.05 | 249.93 | 0.8937 | 471.0 | 502.0 | |
| 0.00 | 1.14 | 0.00 | 1.21 | -15.28 | 121.05 | 58.92 | 249.07 | 0.8864 | 500.0 | 445.4 | |
| 0.00 | 0.79 | 0.00 | 0.83 | -15.49 | 120.84 | 58.71 | 248.79 | 0.8852 | -40.0 | -11.0 | |
| 0.00 | 2.37 | 0.00 | 2.43 | -14.38 | 120.24 | 58.11 | 249.82 | 0.8782 | -574.0 | -375.4 | |
| 0.96 | 2.45 | 1.02 | 2.59 | -15.79 | 120.74 | 58.61 | 248.43 | 0.8852 | -378.0 | -275.7 | |
| 0.00 | 1.14 | 0.00 | 1.16 | -15.09 | 119.72 | 57.58 | 248.88 | 0.8757 | -276.0 | -199.2 | |
| 4.38 | 6.05 | 4.43 | 6.11 | -15.26 | 119.44 | 57.30 | 248.61 | 0.8739 | -518.4 | -249.6 | |
| 1.32 | 2.45 | 1.29 | 2.41 | -13.90 | 118.84 | 56.70 | 249.93 | 0.8658 | -495.1 | -429.5 | |
| 0.00 | 1.58 | 0.00 | 1.58 | -15.31 | 119.00 | 56.87 | 248.42 | 0.8706 | -581.0 | -425.8 | |
| 0.00 | 1.23 | 0.00 | 1.23 | -15.55 | 118.88 | 56.74 | 248.11 | 0.8702 | -550.0 | -479.9 | |
| 0.00 | 0.96 | 0.00 | 0.97 | -16.17 | 118.97 | 56.84 | 247.46 | 0.8725 | -314.0 | -212.2 | |
| 0.00 | 1.58 | 0.00 | 1.57 | -15.76 | 118.74 | 56.60 | 247.83 | 0.8696 | -375.0 | -352.4 | |
| 0.00 | 0.79 | 0.00 | 0.79 | -16.25 | 118.78 | 56.64 | 247.31 | 0.8711 | -354.0 | -329.4 | |
| 6.84 | 35.42 | 6.85 | 35.44 | -16.52 | 118.67 | 56.54 | 246.98 | 0.8710 | -583.8 | -126.9 | |
| 4.47 | -23.00 | 4.40 | -23.00 | -16.69 | 118.01 | 55.88 | 246.58 | 0.8662 | -683.6 | 999999 | |
| 0.35 | 1.32 | 0.34 | 1.26 | -15.25 | 117.35 | 55.22 | 247.95 | 0.8570 | -484.2 | -462.4 | |
| 0.00 | 0.70 | 0.00 | 0.66 | -15.13 | 116.71 | 54.57 | 247.87 | 0.8513 | -603.0 | -512.1 | |
| 0.00 | 1.14 | 0.00 | 1.07 | -15.36 | 116.47 | 54.34 | 247.52 | 0.8500 | -631.0 | -511.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
