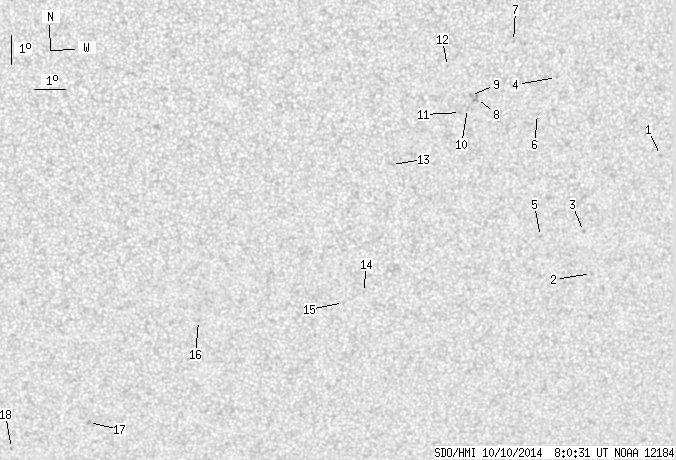

SDO HMI 2014-10-10 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.13 | 0.00 | 13.81 | -19.83 | 75.55 | 13.96 | 207.91 | 0.5005 | 438.4 | 389.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.72 | -19.09 | 82.91 | 21.32 | 219.26 | 0.5450 | 739.0 | 535.8 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -22.99 | 81.10 | 19.51 | 212.53 | 0.5739 | 707.0 | 551.1 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -21.54 | 80.62 | 19.03 | 213.40 | 0.5531 | 746.0 | 589.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -16.39 | 79.13 | 17.54 | 217.32 | 0.4790 | 627.0 | 476.2 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -21.65 | 79.17 | 17.58 | 211.26 | 0.5432 | 597.0 | 489.5 | |
| 0.00 | 1.32 | 0.00 | 0.75 | -17.55 | 78.62 | 17.03 | 215.04 | 0.4883 | 595.0 | 487.7 | |
| 0.00 | 0.96 | 0.00 | 0.53 | -15.18 | 77.63 | 16.04 | 216.49 | 0.4503 | 612.0 | 557.7 | |
| 0.00 | 3.77 | 0.00 | 2.11 | -16.99 | 76.58 | 14.99 | 212.36 | 0.4640 | 718.0 | 643.8 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -16.89 | 76.37 | 14.79 | 212.14 | 0.4610 | 826.0 | 708.8 | |
| 0.00 | 1.67 | 0.00 | 0.93 | -17.31 | 76.31 | 14.72 | 211.53 | 0.4659 | 674.0 | 553.0 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -17.43 | 76.09 | 14.51 | 211.01 | 0.4658 | 683.0 | 515.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -15.92 | 75.56 | 13.97 | 211.87 | 0.4417 | 738.0 | 539.1 | |
| 0.00 | 2.54 | 0.00 | 1.43 | -19.08 | 73.98 | 12.40 | 205.53 | 0.4727 | 582.0 | 442.7 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -23.39 | 73.42 | 11.83 | 200.94 | 0.5286 | 537.0 | 446.2 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -23.72 | 72.78 | 11.19 | 199.68 | 0.5298 | 585.0 | 561.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -24.25 | 68.01 | 6.42 | 191.38 | 0.5184 | -610.0 | -519.2 | |
| 0.00 | 1.67 | 0.00 | 1.00 | -27.83 | 64.46 | 2.88 | 184.53 | 0.5635 | -727.0 | -656.6 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -28.77 | 61.86 | 0.27 | 180.41 | 0.5753 | -737.0 | -651.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
