SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.12 | 0.00 | 6.41 | -19.78 | 97.64 | 36.59 | 232.60 | 0.7044 | -208.7 | -238.2 | |
|
previous
or next observation for the same group /

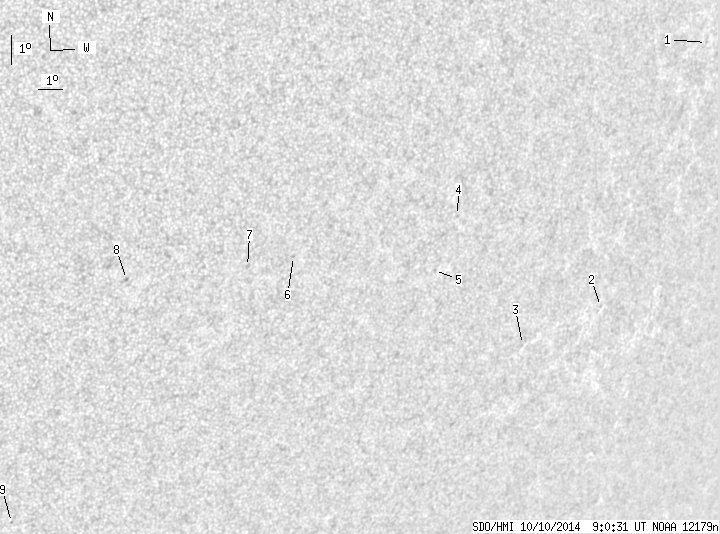

back to the solar disc SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.65 | -13.32 | 110.95 | 49.91 | 248.27 | 0.8036 | 404.0 | 380.6 | |
| 0.00 | 0.44 | 0.00 | 0.37 | -21.70 | 108.89 | 47.85 | 237.74 | 0.8168 | 294.0 | 302.8 | |
| 0.00 | 0.53 | 0.00 | 0.43 | -22.71 | 105.66 | 44.61 | 234.94 | 0.7937 | 292.0 | 341.0 | |
| 0.00 | 1.05 | 0.00 | 0.76 | -18.08 | 101.25 | 40.21 | 237.77 | 0.7279 | -205.0 | -238.4 | |
| 0.00 | 1.14 | 0.00 | 0.83 | -19.86 | 100.81 | 39.77 | 235.36 | 0.7337 | -395.0 | -406.2 | |
| 0.00 | 1.14 | 0.00 | 0.76 | -18.99 | 94.97 | 33.93 | 232.28 | 0.6695 | -542.0 | -406.7 | |
| 0.00 | 1.67 | 0.00 | 1.09 | -19.21 | 93.28 | 32.23 | 230.63 | 0.6539 | -369.0 | -347.9 | |
| 0.00 | 1.40 | 0.00 | 0.88 | -19.38 | 88.87 | 27.83 | 226.35 | 0.6108 | -738.0 | -580.4 | |
| 0.00 | 0.96 | 0.00 | 0.64 | -27.61 | 86.44 | 25.40 | 214.79 | 0.6685 | -619.0 | -500.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
