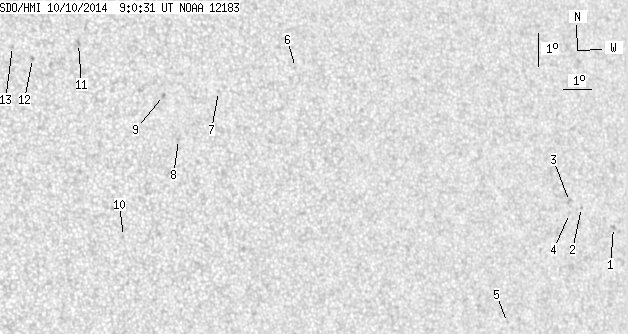

SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.76 | 0.00 | 11.07 | 13.42 | 92.67 | 31.63 | 287.19 | 0.5322 | 145.5 | 109.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.93 | 0.00 | 1.28 | 10.34 | 102.99 | 41.95 | 278.60 | 0.6674 | -634.0 | -533.7 | |
| 0.00 | 0.88 | 0.00 | 0.57 | 11.03 | 101.80 | 40.76 | 279.73 | 0.6525 | -554.0 | -467.1 | |
| 0.00 | 2.45 | 0.00 | 1.59 | 11.24 | 101.35 | 40.31 | 280.10 | 0.6468 | -602.0 | -495.5 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 10.88 | 101.29 | 40.25 | 279.55 | 0.6457 | -589.0 | -508.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 7.79 | 98.45 | 37.41 | 274.73 | 0.6062 | -428.0 | -336.3 | |
| 0.00 | 1.31 | 0.00 | 0.76 | 15.91 | 91.75 | 30.71 | 290.46 | 0.5263 | 650.0 | 372.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | 15.33 | 88.91 | 27.87 | 290.74 | 0.4840 | 601.0 | 479.7 | |
| 0.00 | 1.40 | 0.00 | 0.78 | 13.94 | 87.33 | 26.29 | 288.72 | 0.4557 | 702.0 | 585.8 | |
| 0.00 | 1.67 | 0.00 | 0.93 | 15.30 | 86.99 | 25.95 | 291.78 | 0.4564 | 975.0 | 817.5 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 11.12 | 85.16 | 24.12 | 283.33 | 0.4139 | -722.0 | -568.1 | |
| 0.00 | 2.02 | 0.00 | 1.10 | 17.00 | 84.30 | 23.26 | 297.42 | 0.4272 | 830.0 | 684.1 | |
| 0.00 | 1.67 | 0.00 | 0.90 | 16.61 | 82.69 | 21.65 | 298.01 | 0.4022 | 882.0 | 703.7 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 17.00 | 82.07 | 21.03 | 299.53 | 0.3960 | 780.0 | 673.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
