SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 10.44 | 0.00 | 5.52 | -13.76 | 59.11 | -1.94 | 175.10 | 0.3492 | 251.5 | 178.9 | |
|
previous
or next observation for the same group /

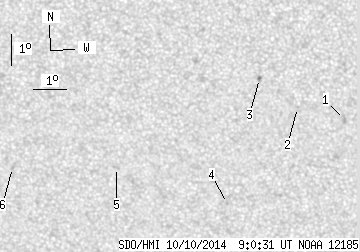

back to the solar disc SDO HMI 2014-10-10 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.42 | 0.00 | 1.80 | -13.29 | 62.78 | 1.73 | 185.05 | 0.3363 | 952.0 | 704.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -12.90 | 61.33 | 0.29 | 180.86 | 0.3287 | 824.0 | 582.8 | |
| 0.00 | 2.02 | 0.00 | 1.05 | -11.99 | 60.17 | -0.87 | 177.26 | 0.3138 | -1002.0 | -807.2 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -15.98 | 59.15 | -1.89 | 175.19 | 0.3803 | 783.0 | 612.3 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -14.84 | 55.72 | -5.32 | 165.95 | 0.3711 | 720.0 | 574.4 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -14.88 | 52.47 | -8.57 | 158.11 | 0.3880 | -768.0 | -588.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
