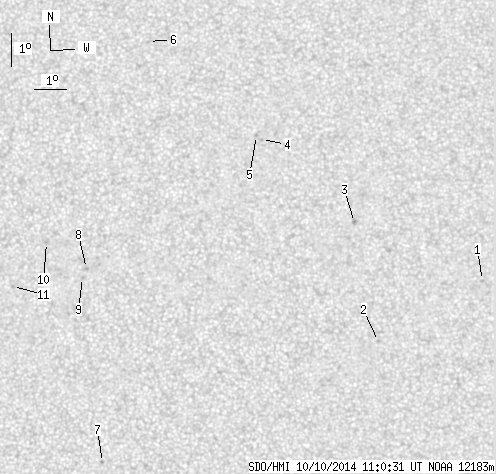

SDO HMI 2014-10-10 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.58 | 0.00 | 5.83 | 13.77 | 58.79 | -1.16 | 296.64 | 0.1592 | -53.7 | -74.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 11:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.06 | 67.01 | 7.07 | 315.12 | 0.1707 | -821.0 | -702.8 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 11.26 | 63.78 | 3.83 | 323.52 | 0.1107 | -892.0 | -713.3 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 14.85 | 63.09 | 3.15 | 340.61 | 0.1605 | -894.0 | -749.6 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 17.39 | 60.22 | 0.27 | 358.67 | 0.1951 | -844.0 | -586.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | 17.51 | 60.06 | 0.11 | 359.44 | 0.1972 | -858.0 | -719.8 | |
| 0.00 | 0.53 | 0.00 | 0.27 | 20.39 | 56.62 | -3.33 | 12.51 | 0.2525 | -684.0 | -496.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 7.63 | 55.39 | -4.56 | 72.02 | 0.0832 | 888.0 | 718.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.46 | 54.82 | -5.13 | 34.42 | 0.1545 | 947.0 | 791.5 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 13.18 | 54.70 | -5.25 | 36.09 | 0.1519 | 943.0 | 821.3 | |
| 0.00 | 0.70 | 0.00 | 0.35 | 14.23 | 53.56 | -6.39 | 37.51 | 0.1779 | 929.0 | 804.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.89 | 52.54 | -7.40 | 46.91 | 0.1728 | 695.0 | 527.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
