SDO HMI 2014-10-10 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.49 | 0.00 | 9.29 | 14.10 | 56.33 | -3.07 | 321.91 | 0.1650 | 192.1 | 252.4 | |
|
previous
or next observation for the same group /

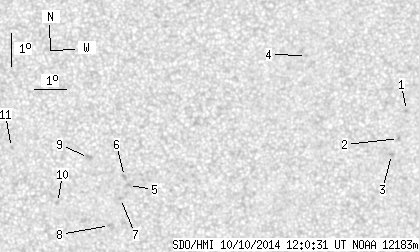

back to the solar disc SDO HMI 2014-10-10 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.66 | 15.72 | 63.37 | 3.97 | 338.13 | 0.1796 | -950.0 | -725.7 | |
| 0.00 | 1.84 | 0.00 | 0.92 | 14.87 | 63.10 | 3.70 | 337.59 | 0.1644 | -921.0 | -703.6 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.39 | 62.87 | 3.48 | 337.66 | 0.1552 | -882.0 | -719.2 | |
| 0.00 | 0.79 | 0.00 | 0.40 | 17.41 | 60.26 | 0.86 | 355.77 | 0.1961 | -750.0 | -629.0 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 13.46 | 54.76 | -4.64 | 31.80 | 0.1500 | 857.0 | 702.6 | |
| 0.00 | 2.28 | 0.00 | 1.14 | 13.73 | 54.63 | -4.77 | 31.54 | 0.1551 | 860.0 | 665.1 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 13.06 | 54.52 | -4.88 | 34.60 | 0.1466 | 872.0 | 699.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 12.25 | 54.20 | -5.20 | 39.89 | 0.1388 | 772.0 | 608.5 | |
| 0.00 | 3.42 | 0.00 | 1.72 | 14.29 | 53.50 | -5.90 | 35.12 | 0.1738 | 743.0 | 657.7 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 12.92 | 52.58 | -6.82 | 44.44 | 0.1661 | 760.0 | 570.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 14.57 | 51.10 | -8.30 | 43.59 | 0.2036 | 752.0 | 637.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
