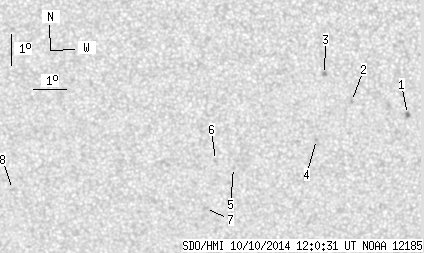

SDO HMI 2014-10-10 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 12.69 | 0.23 | 6.72 | -14.13 | 58.57 | -0.83 | 178.31 | 0.3532 | 411.2 | 284.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 12:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 2.19 | 0.23 | 1.15 | -13.27 | 62.79 | 3.39 | 189.82 | 0.3394 | 1022.6 | 804.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -12.85 | 61.07 | 1.67 | 184.97 | 0.3288 | 833.0 | 670.8 | |
| 0.00 | 2.19 | 0.00 | 1.14 | -11.99 | 60.24 | 0.84 | 182.62 | 0.3137 | -1006.0 | -768.5 | |
| 0.00 | 1.31 | 0.00 | 0.69 | -14.05 | 59.99 | 0.59 | 181.67 | 0.3476 | 888.0 | 705.9 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.95 | 57.42 | -1.98 | 174.72 | 0.3637 | 715.0 | 549.5 | |
| 0.00 | 1.31 | 0.00 | 0.70 | -14.73 | 56.87 | -2.53 | 173.18 | 0.3610 | 647.0 | 592.8 | |
| 0.00 | 2.10 | 0.00 | 1.13 | -16.28 | 56.54 | -2.86 | 172.84 | 0.3866 | 785.0 | 575.2 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.72 | 50.51 | -8.89 | 158.20 | 0.4023 | -736.0 | -510.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
