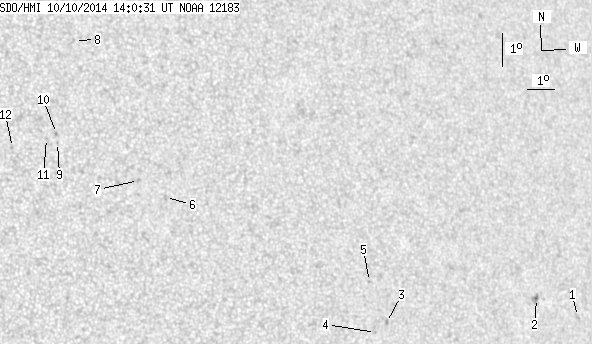

SDO HMI 2014-10-10 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 19.90 | 0.53 | 12.40 | 12.73 | 94.85 | 36.54 | 284.23 | 0.5980 | 181.8 | -132.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.72 | 0.00 | 1.88 | 10.30 | 103.04 | 44.73 | 278.42 | 0.7024 | -678.0 | -517.0 | |
| 0.79 | 5.61 | 0.53 | 3.79 | 10.97 | 101.42 | 43.12 | 279.47 | 0.6826 | -739.7 | -633.7 | |
| 0.00 | 1.84 | 0.00 | 1.14 | 10.66 | 95.37 | 37.07 | 279.53 | 0.6029 | -720.0 | -616.5 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 10.39 | 94.91 | 36.61 | 279.13 | 0.5964 | -652.0 | -452.0 | |
| 0.00 | 1.05 | 0.00 | 0.65 | 11.93 | 94.91 | 36.61 | 281.71 | 0.5981 | -691.0 | -495.7 | |
| 0.00 | 1.93 | 0.00 | 1.11 | 14.89 | 87.86 | 29.56 | 289.08 | 0.5066 | 713.0 | 553.8 | |
| 0.00 | 1.49 | 0.00 | 0.85 | 15.45 | 86.99 | 28.69 | 290.59 | 0.4963 | 908.0 | 736.6 | |
| 0.00 | 0.35 | 0.00 | 0.20 | 19.82 | 85.46 | 27.15 | 299.91 | 0.4973 | 622.0 | 485.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 16.74 | 84.34 | 26.04 | 294.74 | 0.4648 | 656.0 | 551.7 | |
| 0.00 | 1.31 | 0.00 | 0.73 | 17.02 | 84.35 | 26.04 | 295.29 | 0.4663 | 794.0 | 658.6 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 16.88 | 83.98 | 25.68 | 295.28 | 0.4604 | 661.0 | 578.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 16.66 | 82.77 | 24.47 | 295.71 | 0.4423 | 875.0 | 657.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
