SDO HMI 2014-10-10 14:00:31 UT

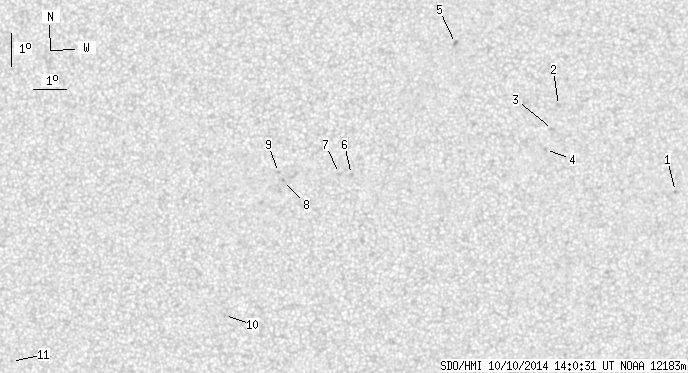

See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.06 | 0.00 | 7.56 | 14.01 | 58.99 | 0.69 | 316.21 | 0.1654 | -61.5 | -135.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.06 | 66.89 | 8.59 | 309.72 | 0.1899 | -874.0 | -708.2 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 15.71 | 63.33 | 5.03 | 333.03 | 0.1869 | -713.0 | -635.4 | |
| 0.00 | 2.01 | 0.00 | 1.01 | 14.98 | 63.12 | 4.82 | 332.08 | 0.1743 | -869.0 | -729.7 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 14.38 | 62.89 | 4.59 | 331.50 | 0.1633 | -934.0 | -808.8 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 17.62 | 60.14 | 1.84 | 351.22 | 0.2015 | -842.0 | -698.7 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 13.65 | 56.90 | -1.40 | 10.37 | 0.1327 | 904.0 | 699.8 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 13.68 | 56.53 | -1.77 | 12.96 | 0.1345 | 752.0 | 642.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.46 | 54.81 | -3.49 | 25.05 | 0.1406 | 973.0 | 865.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.70 | 54.65 | -3.65 | 25.28 | 0.1455 | 813.0 | 681.3 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 9.39 | 53.06 | -5.24 | 57.99 | 0.1068 | 877.0 | 639.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.92 | 46.57 | -11.73 | 80.84 | 0.2050 | -763.0 | -584.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
