SDO HMI 2014-10-10 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.62 | 0.00 | 14.27 | -21.75 | 70.97 | 12.67 | 203.54 | 0.5195 | -72.9 | -145.0 | |
|
previous
or next observation for the same group /

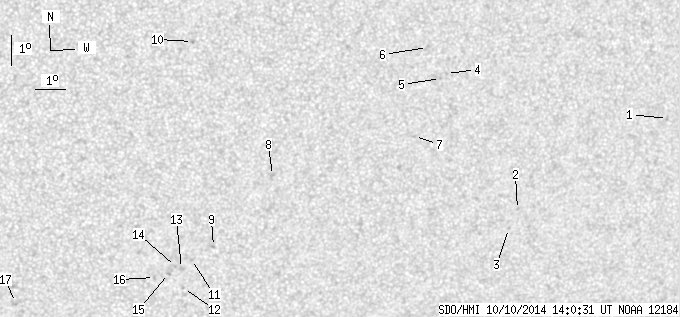

back to the solar disc SDO HMI 2014-10-10 14:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.31 | 0.00 | 0.80 | -19.15 | 84.22 | 25.92 | 224.67 | 0.5896 | 628.0 | 518.1 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -21.97 | 79.44 | 21.14 | 215.72 | 0.5751 | 620.0 | 570.6 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -22.61 | 79.23 | 20.93 | 214.77 | 0.5805 | 548.0 | 446.5 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -17.33 | 76.45 | 18.15 | 217.05 | 0.4956 | 728.0 | 605.1 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -17.49 | 76.27 | 17.97 | 216.58 | 0.4958 | 644.0 | 456.5 | |
| 0.00 | 2.28 | 0.00 | 1.28 | -16.46 | 75.75 | 17.45 | 217.09 | 0.4787 | 249.0 | 165.0 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -19.37 | 75.61 | 17.31 | 213.33 | 0.5129 | 702.0 | 520.7 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -20.53 | 71.04 | 12.74 | 204.78 | 0.4945 | -676.0 | -487.2 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -22.89 | 69.29 | 10.99 | 199.93 | 0.5171 | -661.0 | -537.8 | |
| 0.00 | 0.96 | 0.00 | 0.52 | -16.06 | 68.17 | 9.87 | 203.60 | 0.4131 | 644.0 | 616.8 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -23.32 | 68.59 | 10.29 | 198.48 | 0.5197 | -714.0 | -619.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -24.32 | 68.41 | 10.11 | 197.53 | 0.5329 | -612.0 | -440.0 | |
| 0.00 | 2.37 | 0.00 | 1.37 | -23.63 | 68.29 | 9.99 | 197.77 | 0.5226 | -714.0 | -511.6 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -23.55 | 68.08 | 9.78 | 197.48 | 0.5206 | -838.0 | -724.2 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -23.79 | 67.87 | 9.57 | 196.97 | 0.5230 | -778.0 | -662.2 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -23.92 | 67.41 | 9.11 | 196.13 | 0.5230 | -659.0 | -572.3 | |
| 0.00 | 4.12 | 0.00 | 2.39 | -24.72 | 62.85 | 4.55 | 188.00 | 0.5204 | -351.0 | -403.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
