SDO HMI 2014-10-10 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.70 | 0.00 | 8.86 | 14.35 | 59.35 | 1.60 | 329.64 | 0.1616 | -133.2 | -168.3 | |
|
previous
or next observation for the same group /

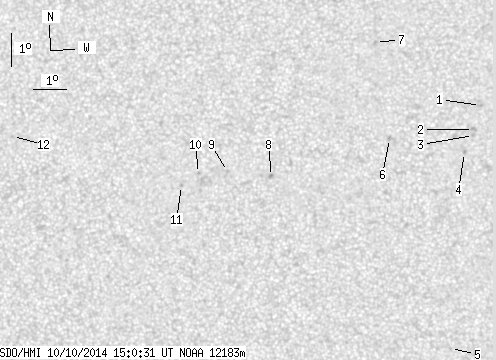

back to the solar disc SDO HMI 2014-10-10 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 15.73 | 63.40 | 5.65 | 330.30 | 0.1923 | -950.0 | -802.0 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 15.00 | 63.16 | 5.41 | 329.34 | 0.1795 | -783.0 | -698.3 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 14.82 | 63.16 | 5.41 | 328.82 | 0.1768 | -755.0 | -611.0 | |
| 0.00 | 1.58 | 0.00 | 0.79 | 14.31 | 62.87 | 5.12 | 328.62 | 0.1667 | -902.0 | -749.8 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 8.42 | 62.33 | 4.58 | 296.50 | 0.0887 | -772.0 | -506.6 | |
| 0.00 | 1.84 | 0.00 | 0.92 | 14.75 | 60.55 | 2.80 | 342.41 | 0.1571 | -876.0 | -694.6 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 17.67 | 60.16 | 2.41 | 348.64 | 0.2041 | -851.0 | -716.0 | |
| 0.00 | 2.19 | 0.00 | 1.09 | 13.61 | 56.90 | -0.85 | 6.34 | 0.1307 | 932.0 | 734.0 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 13.76 | 55.55 | -2.20 | 15.80 | 0.1377 | 847.0 | 611.4 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 13.70 | 54.65 | -3.10 | 21.85 | 0.1417 | 868.0 | 682.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 13.33 | 54.13 | -3.62 | 26.21 | 0.1396 | 917.0 | 750.9 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 14.76 | 48.85 | -8.90 | 44.85 | 0.2131 | 727.0 | 607.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
