SDO HMI 2014-10-10 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.90 | 0.00 | 5.32 | -14.99 | 55.44 | -2.31 | 176.36 | 0.3807 | -76.4 | 5.4 | |
|
previous
or next observation for the same group /

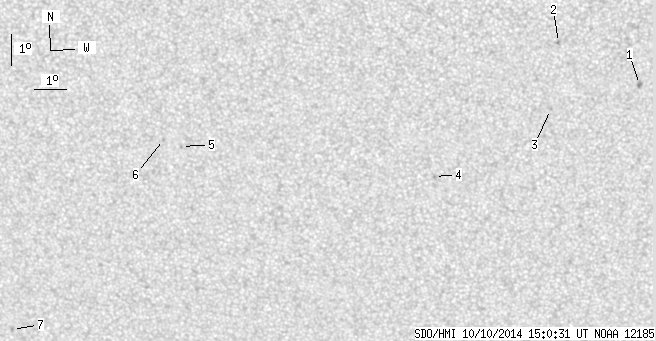

back to the solar disc SDO HMI 2014-10-10 15:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.63 | 0.00 | 1.39 | -13.29 | 62.84 | 5.09 | 194.54 | 0.3455 | 1092.0 | 858.7 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -11.94 | 60.33 | 2.58 | 188.07 | 0.3155 | -944.0 | -772.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -14.06 | 60.11 | 2.36 | 186.58 | 0.3498 | 704.0 | 613.8 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -16.21 | 56.51 | -1.24 | 176.88 | 0.3832 | 855.0 | 730.8 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -15.31 | 48.63 | -9.12 | 157.28 | 0.3975 | -663.0 | -566.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -15.10 | 48.08 | -9.68 | 155.82 | 0.3979 | -830.0 | -670.7 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -21.47 | 42.72 | -15.03 | 152.35 | 0.5222 | -749.0 | -672.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
