SDO HMI 2014-10-10 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.78 | 0.00 | 9.94 | 13.08 | 55.76 | -1.44 | 284.09 | 0.1624 | 192.5 | 97.5 | |
|
previous
or next observation for the same group /

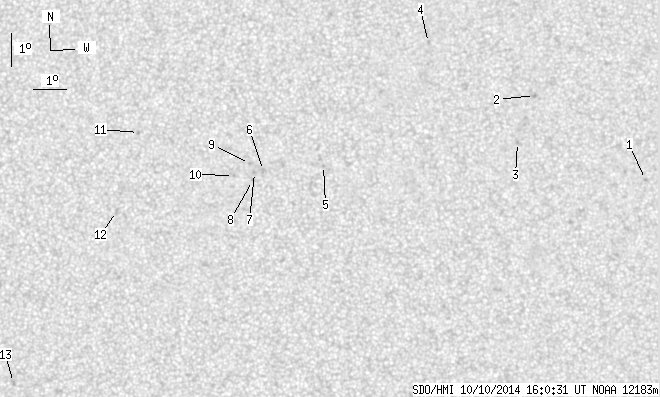

back to the solar disc SDO HMI 2014-10-10 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.75 | 13.12 | 66.84 | 9.64 | 306.85 | 0.2048 | -901.0 | -640.5 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 15.72 | 63.48 | 6.28 | 327.65 | 0.1976 | -924.0 | -787.3 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 14.30 | 62.91 | 5.71 | 325.78 | 0.1721 | -978.0 | -691.9 | |
| 0.00 | 1.49 | 0.00 | 0.75 | 17.36 | 60.20 | 3.00 | 345.56 | 0.2012 | -806.0 | -705.8 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 13.64 | 56.91 | -0.29 | 2.19 | 0.1305 | 979.0 | 835.2 | |
| 0.00 | 2.28 | 0.00 | 1.14 | 13.49 | 55.06 | -2.14 | 15.92 | 0.1329 | 804.0 | 668.4 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 13.43 | 54.78 | -2.42 | 18.00 | 0.1333 | 890.0 | 793.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.19 | 54.73 | -2.47 | 19.01 | 0.1296 | 851.0 | 659.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.70 | 54.63 | -2.57 | 18.42 | 0.1386 | 865.0 | 695.9 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.34 | 54.14 | -3.06 | 22.63 | 0.1356 | 862.0 | 691.0 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 14.61 | 51.18 | -6.02 | 34.61 | 0.1796 | 905.0 | 697.7 | |
| 0.00 | 2.45 | 0.00 | 1.23 | 12.22 | 50.56 | -6.64 | 46.87 | 0.1556 | 838.0 | 618.2 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 7.05 | 47.51 | -9.68 | 84.29 | 0.1686 | -883.0 | -634.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
