SDO HMI 2014-10-10 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.22 | 0.00 | 10.53 | -21.63 | 70.54 | 13.34 | 204.96 | 0.5194 | -159.4 | -244.2 | |
|
previous
or next observation for the same group /

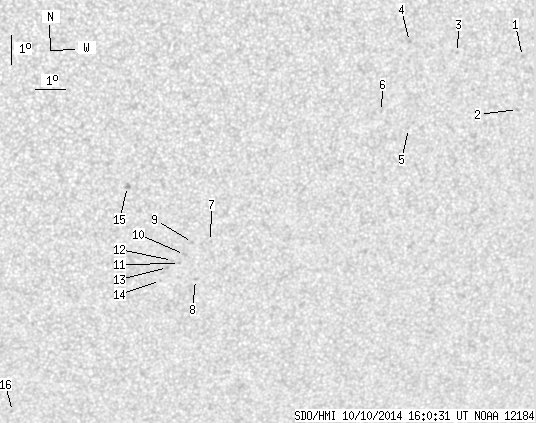

back to the solar disc SDO HMI 2014-10-10 16:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.51 | -17.13 | 79.10 | 21.90 | 222.55 | 0.5292 | 641.0 | 529.8 | |
| 0.00 | 1.23 | 0.00 | 0.73 | -18.87 | 79.16 | 21.96 | 220.38 | 0.5483 | 655.0 | 540.3 | |
| 0.00 | 0.96 | 0.00 | 0.55 | -16.91 | 76.90 | 19.70 | 219.87 | 0.5051 | 656.0 | 498.5 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -16.49 | 75.27 | 18.07 | 218.02 | 0.4848 | 812.0 | 649.2 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -19.35 | 75.54 | 18.34 | 214.88 | 0.5212 | 635.0 | 541.0 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -18.75 | 74.57 | 17.37 | 214.14 | 0.5058 | 708.0 | 555.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -22.96 | 69.32 | 12.12 | 201.74 | 0.5240 | -525.0 | -449.5 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -24.26 | 68.94 | 11.74 | 200.18 | 0.5398 | -661.0 | -526.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -22.98 | 68.72 | 11.52 | 200.76 | 0.5210 | -840.0 | -649.5 | |
| 0.00 | 1.84 | 0.00 | 1.07 | -23.38 | 68.49 | 11.29 | 200.09 | 0.5255 | -656.0 | -606.6 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -23.69 | 68.35 | 11.15 | 199.64 | 0.5290 | -665.0 | -529.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | -23.58 | 68.11 | 10.91 | 199.32 | 0.5263 | -689.0 | -669.2 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -23.82 | 67.96 | 10.76 | 198.92 | 0.5289 | -803.0 | -704.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -24.26 | 67.77 | 10.57 | 198.31 | 0.5342 | -497.0 | -389.1 | |
| 0.00 | 2.98 | 0.00 | 1.68 | -21.02 | 66.45 | 9.25 | 198.21 | 0.4819 | -791.0 | -685.0 | |
| 0.00 | 0.61 | 0.00 | 0.37 | -28.85 | 63.08 | 5.88 | 188.90 | 0.5827 | -530.0 | -402.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
