SDO HMI 2014-10-10 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.70 | 0.00 | 9.89 | 13.86 | 58.24 | 1.60 | 335.37 | 0.1535 | 29.5 | 86.5 | |
|
previous
or next observation for the same group /

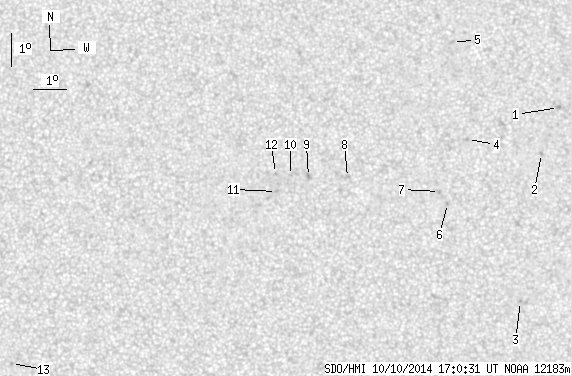

back to the solar disc SDO HMI 2014-10-10 17:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.01 | 0.00 | 1.02 | 15.68 | 63.45 | 6.81 | 325.46 | 0.2021 | -1102.0 | -843.0 | |
| 0.00 | 1.66 | 0.00 | 0.84 | 14.30 | 62.88 | 6.23 | 323.42 | 0.1773 | -1038.0 | -747.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 9.85 | 62.13 | 5.48 | 304.40 | 0.1146 | -848.0 | -647.7 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 14.74 | 60.59 | 3.95 | 335.94 | 0.1640 | -821.0 | -685.7 | |
| 0.00 | 2.01 | 0.00 | 1.02 | 17.70 | 60.19 | 3.54 | 343.60 | 0.2091 | -803.0 | -563.9 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 12.82 | 59.94 | 3.30 | 334.14 | 0.1291 | 837.0 | 721.3 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 13.18 | 59.70 | 3.06 | 336.94 | 0.1331 | 865.0 | 813.2 | |
| 0.00 | 2.80 | 0.00 | 1.40 | 13.62 | 56.88 | 0.23 | 358.28 | 0.1300 | 894.0 | 628.4 | |
| 0.00 | 2.19 | 0.00 | 1.09 | 13.65 | 55.68 | -0.97 | 7.24 | 0.1315 | 958.0 | 790.3 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 13.68 | 55.12 | -1.53 | 11.23 | 0.1335 | 751.0 | 607.9 | |
| 0.00 | 1.23 | 0.00 | 0.61 | 13.19 | 54.69 | -1.95 | 15.22 | 0.1271 | 862.0 | 759.6 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 13.74 | 54.66 | -1.99 | 14.39 | 0.1363 | 789.0 | 586.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | 7.95 | 46.67 | -9.98 | 79.31 | 0.1755 | -960.0 | -808.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
