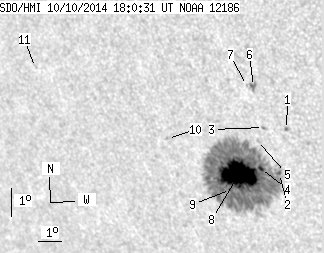

SDO HMI 2014-10-10 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.50 | 402.18 | 46.56 | 285.75 | -20.55 | 18.27 | -37.82 | 126.75 | 0.7189 | 997.2 | 281.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 18:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 1.07 | -18.97 | 20.59 | -35.51 | 126.48 | 0.6855 | 841.0 | 743.1 | |
| 0.79 | 389.74 | 0.55 | 277.09 | -20.47 | 19.92 | -36.18 | 127.82 | 0.7023 | 902.4 | 277.0 | |
| 0.00 | 1.40 | 0.00 | 0.96 | -18.97 | 19.69 | -36.41 | 125.82 | 0.6946 | 680.0 | 569.6 | |
| 1.84 | -2.00 | 1.29 | -2.00 | -20.35 | 19.20 | -36.90 | 127.15 | 0.7086 | 1079.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.85 | -19.42 | 19.33 | -36.76 | 126.12 | 0.7011 | 585.0 | 450.1 | |
| 0.00 | 4.99 | 0.00 | 3.39 | -17.63 | 19.63 | -36.47 | 124.11 | 0.6865 | 879.0 | 691.2 | |
| 0.00 | 0.88 | 0.00 | 0.60 | -17.61 | 19.36 | -36.74 | 123.90 | 0.6893 | 554.0 | 454.6 | |
| 61.73 | -2.00 | 43.90 | -2.00 | -20.62 | 18.23 | -37.86 | 126.80 | 0.7197 | 1112.0 | 999999 | |
| 1.14 | -2.00 | 0.82 | -2.00 | -21.15 | 17.74 | -38.35 | 127.10 | 0.7278 | 244.8 | 999999 | |
| 0.00 | 1.31 | 0.00 | 0.96 | -19.61 | 15.61 | -40.49 | 123.89 | 0.7392 | -581.0 | -473.2 | |
| 0.00 | 1.05 | 0.00 | 0.83 | -17.68 | 10.49 | -45.60 | 118.77 | 0.7789 | -457.0 | -354.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
