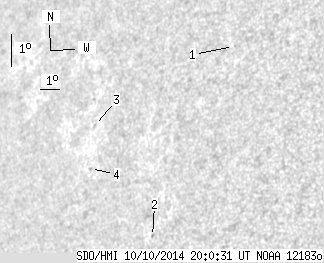

SDO HMI 2014-10-10 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.76 | 0.00 | 3.20 | 13.32 | 0.31 | -54.68 | 78.01 | 0.8136 | -259.5 | -324.1 | |
|
next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.27 | 17.25 | 4.88 | -50.11 | 72.66 | 0.7700 | 312.0 | 326.8 | |
| 0.00 | 0.96 | 0.00 | 0.77 | 11.26 | 2.75 | -52.24 | 80.52 | 0.7884 | -461.0 | -474.6 | |
| 0.00 | 1.05 | 0.00 | 0.93 | 14.30 | 358.73 | -56.26 | 76.89 | 0.8295 | -305.0 | -180.0 | |
| 0.00 | 1.40 | 0.00 | 1.23 | 13.01 | 358.97 | -56.02 | 78.45 | 0.8268 | -584.0 | -481.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
