SDO HMI 2014-10-10 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.11 | 0.00 | 12.52 | -22.48 | 71.28 | 16.29 | 208.51 | 0.5515 | -64.8 | -172.5 | |
|
previous
or next observation for the same group /

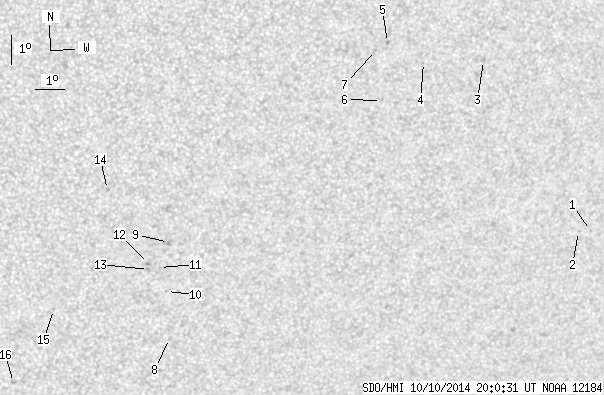

back to the solar disc SDO HMI 2014-10-10 20:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.68 | -23.21 | 83.49 | 28.50 | 222.48 | 0.6516 | 558.0 | 493.1 | |
| 0.00 | 0.88 | 0.00 | 0.57 | -23.22 | 83.04 | 28.05 | 222.04 | 0.6478 | 486.0 | 421.4 | |
| 0.00 | 1.84 | 0.00 | 1.09 | -17.29 | 78.61 | 23.62 | 224.46 | 0.5483 | 711.0 | 622.6 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -17.27 | 76.57 | 21.58 | 221.94 | 0.5275 | 555.0 | 481.0 | |
| 0.00 | 1.31 | 0.00 | 0.75 | -16.56 | 75.28 | 20.29 | 221.15 | 0.5071 | 902.0 | 755.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -18.46 | 75.30 | 20.31 | 218.72 | 0.5284 | 636.0 | 540.9 | |
| 0.00 | 0.61 | 0.00 | 0.35 | -16.81 | 74.91 | 19.92 | 220.30 | 0.5062 | 810.0 | 648.3 | |
| 0.00 | 1.40 | 0.00 | 0.85 | -26.35 | 69.09 | 14.10 | 202.20 | 0.5800 | -375.0 | -315.2 | |
| 0.00 | 3.77 | 0.00 | 2.20 | -22.99 | 68.68 | 13.69 | 204.20 | 0.5335 | -802.0 | -691.9 | |
| 0.00 | 0.26 | 0.00 | 0.16 | -24.69 | 68.79 | 13.80 | 203.02 | 0.5566 | -484.0 | -417.3 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -23.84 | 68.47 | 13.47 | 203.18 | 0.5436 | -520.0 | -477.2 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -23.69 | 68.08 | 13.09 | 202.70 | 0.5394 | -809.0 | -753.8 | |
| 0.00 | 1.93 | 0.00 | 1.13 | -23.90 | 68.10 | 13.11 | 202.58 | 0.5423 | -714.0 | -552.1 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -21.13 | 66.49 | 11.50 | 202.15 | 0.4953 | -657.0 | -478.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -25.22 | 65.03 | 10.04 | 196.88 | 0.5452 | -575.0 | -434.4 | |
| 0.00 | 2.19 | 0.00 | 1.32 | -27.80 | 63.89 | 8.90 | 193.78 | 0.5765 | -758.0 | -602.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
