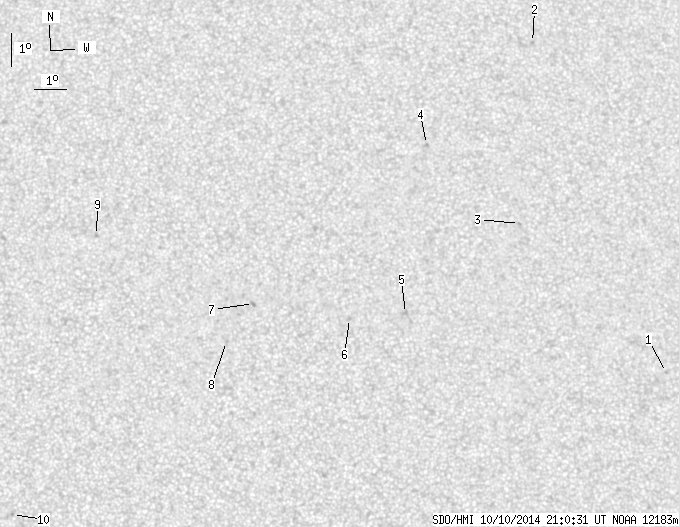

SDO HMI 2014-10-10 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 15.86 | 0.00 | 8.00 | 14.16 | 58.09 | 3.65 | 316.57 | 0.1810 | 4.3 | 80.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.72 | 11.21 | 67.87 | 13.43 | 291.65 | 0.2462 | -744.0 | -547.6 | |
| 0.00 | 1.49 | 0.00 | 0.77 | 21.34 | 64.21 | 9.77 | 328.97 | 0.3081 | -782.0 | -599.5 | |
| 0.00 | 1.49 | 0.00 | 0.76 | 15.80 | 63.48 | 9.04 | 318.07 | 0.2273 | -854.0 | -701.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 18.25 | 60.64 | 6.21 | 333.91 | 0.2345 | -885.0 | -738.1 | |
| 0.00 | 2.19 | 0.00 | 1.10 | 13.13 | 59.83 | 5.40 | 322.97 | 0.1528 | 803.0 | 662.9 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 13.00 | 58.11 | 3.67 | 332.31 | 0.1348 | 776.0 | 602.9 | |
| 0.00 | 2.28 | 0.00 | 1.14 | 13.47 | 55.16 | 0.72 | 354.48 | 0.1279 | 911.0 | 715.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 12.32 | 54.33 | -0.11 | 1.01 | 0.1074 | 931.0 | 717.8 | |
| 0.00 | 1.84 | 0.00 | 0.93 | 15.51 | 50.29 | -4.15 | 23.24 | 0.1775 | 830.0 | 591.8 | |
| 0.00 | 1.31 | 0.00 | 0.65 | 7.10 | 47.86 | -6.58 | 81.64 | 0.1155 | -943.0 | -686.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
