SDO HMI 2014-10-10 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.92 | 0.00 | 10.00 | -13.35 | 58.78 | 4.34 | 192.59 | 0.3510 | 160.6 | 27.9 | |
|
previous
or next observation for the same group /

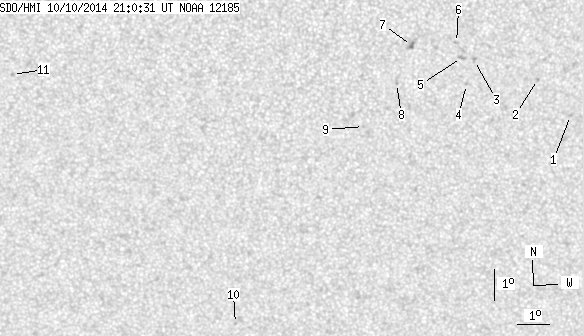

back to the solar disc SDO HMI 2014-10-10 21:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | -14.44 | 64.04 | 9.60 | 204.73 | 0.3878 | 671.0 | 549.0 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -13.27 | 62.97 | 8.53 | 203.50 | 0.3635 | 936.0 | 799.0 | |
| 0.00 | 2.19 | 0.00 | 1.15 | -12.64 | 61.00 | 6.56 | 199.09 | 0.3422 | 860.0 | 722.8 | |
| 0.00 | 0.61 | 0.00 | 0.32 | -13.39 | 60.77 | 6.33 | 197.78 | 0.3528 | 659.0 | 522.9 | |
| 0.00 | 3.33 | 0.00 | 1.75 | -12.54 | 60.59 | 6.15 | 198.09 | 0.3385 | 936.0 | 694.0 | |
| 0.00 | 1.66 | 0.00 | 0.87 | -12.06 | 60.43 | 5.99 | 198.08 | 0.3302 | -773.0 | -510.4 | |
| 0.00 | 3.68 | 0.00 | 1.93 | -12.14 | 59.05 | 4.61 | 194.04 | 0.3252 | -1169.0 | -919.6 | |
| 0.00 | 1.49 | 0.00 | 0.78 | -13.34 | 58.60 | 4.17 | 191.95 | 0.3428 | -878.0 | -702.6 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -14.70 | 57.60 | 3.17 | 188.53 | 0.3619 | 802.0 | 603.3 | |
| 0.00 | 1.05 | 0.00 | 0.59 | -21.15 | 53.61 | -0.83 | 178.31 | 0.4614 | 635.0 | 485.7 | |
| 0.00 | 1.66 | 0.00 | 0.88 | -13.08 | 46.78 | -7.66 | 158.46 | 0.3552 | -912.0 | -660.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
