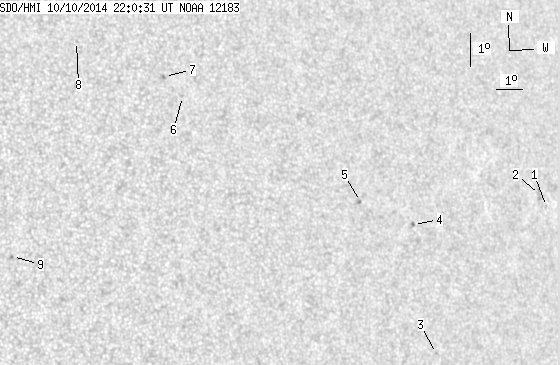

SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.44 | 11.47 | 0.29 | 7.72 | 11.33 | 96.06 | 42.17 | 280.57 | 0.6679 | -97.8 | -332.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.77 | 10.61 | 101.68 | 47.79 | 278.74 | 0.7389 | -542.0 | -480.6 | |
| 0.00 | 4.55 | 0.00 | 3.32 | 10.99 | 101.44 | 47.55 | 279.27 | 0.7363 | -612.0 | -552.3 | |
| 0.00 | 0.79 | 0.00 | 0.53 | 6.59 | 96.32 | 42.43 | 273.00 | 0.6735 | -644.0 | -535.1 | |
| 0.44 | 1.49 | 0.29 | 0.99 | 10.51 | 95.91 | 42.03 | 278.86 | 0.6685 | -627.6 | -556.4 | |
| 0.00 | 0.35 | 0.00 | 0.23 | 11.34 | 93.91 | 40.02 | 280.30 | 0.6432 | 693.0 | 580.8 | |
| 0.00 | 0.61 | 0.00 | 0.37 | 14.93 | 87.68 | 33.79 | 287.51 | 0.5657 | 631.0 | 481.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 15.57 | 87.12 | 33.24 | 288.83 | 0.5600 | 755.0 | 704.9 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 16.81 | 84.12 | 30.23 | 292.37 | 0.5233 | 415.0 | 447.1 | |
| 0.00 | 1.14 | 0.00 | 0.63 | 10.45 | 81.01 | 27.12 | 280.87 | 0.4584 | -795.0 | -651.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
