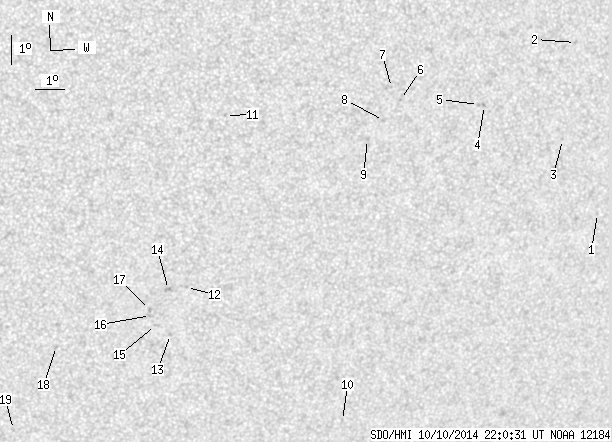

SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 26.35 | 0.00 | 15.72 | -21.46 | 72.51 | 18.62 | 212.86 | 0.5568 | 90.3 | -53.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 0.90 | -21.10 | 83.31 | 29.43 | 225.82 | 0.6415 | 549.0 | 379.3 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -15.39 | 81.50 | 27.62 | 231.46 | 0.5735 | 626.0 | 526.4 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -18.55 | 81.54 | 27.66 | 227.26 | 0.6015 | 695.0 | 502.7 | |
| 0.00 | 1.31 | 0.00 | 0.78 | -17.28 | 78.61 | 24.72 | 225.76 | 0.5595 | 740.0 | 680.5 | |
| 0.00 | 1.05 | 0.00 | 0.63 | -17.24 | 78.39 | 24.51 | 225.58 | 0.5569 | 577.0 | 520.5 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -16.95 | 75.70 | 21.81 | 222.67 | 0.5265 | 663.0 | 584.9 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -16.55 | 75.34 | 21.46 | 222.75 | 0.5186 | 857.0 | 619.5 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -17.62 | 75.20 | 21.32 | 221.15 | 0.5287 | 721.0 | 509.9 | |
| 0.00 | 1.58 | 0.00 | 0.92 | -18.22 | 74.74 | 20.85 | 219.76 | 0.5308 | 573.0 | 434.2 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -27.88 | 75.46 | 21.57 | 210.42 | 0.6441 | 84.0 | 102.6 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -17.25 | 69.93 | 16.04 | 213.83 | 0.4760 | 724.0 | 579.2 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -22.97 | 69.22 | 15.33 | 206.72 | 0.5436 | -648.0 | -538.4 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -24.58 | 68.87 | 14.98 | 204.82 | 0.5622 | -601.0 | -501.9 | |
| 0.00 | 3.15 | 0.00 | 1.85 | -23.02 | 68.62 | 14.73 | 205.77 | 0.5404 | -879.0 | -740.2 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -24.25 | 68.32 | 14.43 | 204.29 | 0.5546 | -510.0 | -361.7 | |
| 0.00 | 2.36 | 0.00 | 1.40 | -23.90 | 68.11 | 14.22 | 204.27 | 0.5487 | -649.0 | -593.9 | |
| 0.00 | 2.01 | 0.00 | 1.19 | -23.69 | 68.05 | 14.17 | 204.35 | 0.5457 | -757.0 | -638.6 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -24.90 | 65.04 | 11.16 | 198.84 | 0.5457 | -407.0 | -445.9 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -27.82 | 63.85 | 9.96 | 195.34 | 0.5806 | -643.0 | -582.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
