SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.61 | 11.12 | 0.32 | 5.91 | -13.57 | 59.10 | 5.21 | 194.42 | 0.3622 | 33.0 | 244.2 | |
|
previous
or next observation for the same group /

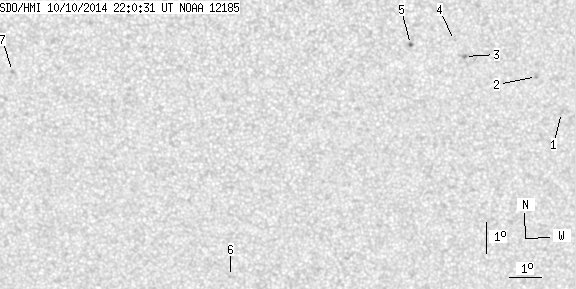

back to the solar disc SDO HMI 2014-10-10 22:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.01 | 0.00 | 1.08 | -14.44 | 63.80 | 9.92 | 205.43 | 0.3901 | 545.0 | 432.0 | |
| 0.00 | 2.28 | 0.00 | 1.21 | -13.28 | 62.97 | 9.09 | 204.85 | 0.3674 | 899.0 | 602.5 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -12.61 | 60.72 | 6.83 | 199.87 | 0.3433 | 996.0 | 869.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -12.10 | 60.40 | 6.51 | 199.51 | 0.3336 | -601.0 | -516.5 | |
| 0.61 | 1.66 | 0.32 | 0.87 | -12.21 | 59.05 | 5.16 | 195.59 | 0.3286 | -968.4 | -812.0 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -19.68 | 53.51 | -0.38 | 179.18 | 0.4381 | 581.0 | 549.1 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -13.07 | 46.81 | -7.07 | 159.97 | 0.3517 | -900.0 | -717.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
