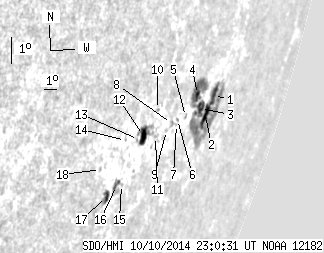

SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.12 | 160.82 | 57.21 | 268.32 | -15.13 | 123.49 | 70.16 | 251.99 | 0.9554 | 137.7 | 98.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.57 | 118.76 | 11.95 | 210.11 | -14.66 | 125.15 | 71.82 | 252.82 | 0.9633 | 162.5 | 113.4 | |
| 7.88 | -1.00 | 14.14 | -1.00 | -15.26 | 124.84 | 71.51 | 252.15 | 0.9624 | 202.8 | 999999 | |
| 6.92 | -1.00 | 11.90 | -1.00 | -14.96 | 124.12 | 70.78 | 252.31 | 0.9588 | 515.7 | 999999 | |
| 1.84 | -1.00 | 3.03 | -1.00 | -14.45 | 123.45 | 70.12 | 252.70 | 0.9551 | 678.6 | 999999 | |
| 0.00 | 1.23 | 0.00 | 1.97 | -15.08 | 122.81 | 69.48 | 251.93 | 0.9526 | 427.0 | 432.7 | |
| 0.00 | 1.23 | 0.00 | 1.91 | -15.10 | 122.12 | 68.79 | 251.76 | 0.9491 | 476.0 | 473.6 | |
| 0.00 | 0.79 | 0.00 | 1.22 | -15.26 | 122.15 | 68.82 | 251.60 | 0.9494 | 416.0 | 438.9 | |
| 0.00 | 2.54 | 0.00 | 3.86 | -15.18 | 121.66 | 68.33 | 251.58 | 0.9468 | 521.0 | 471.1 | |
| 0.00 | 0.70 | 0.00 | 1.05 | -15.37 | 121.37 | 68.04 | 251.32 | 0.9454 | 375.0 | 375.0 | |
| 0.00 | 1.23 | 0.00 | 1.73 | -14.58 | 120.12 | 66.79 | 251.86 | 0.9375 | -262.0 | -210.4 | |
| 0.00 | 1.40 | 0.00 | 2.03 | -15.48 | 120.53 | 67.20 | 251.02 | 0.9410 | 546.0 | 473.9 | |
| 8.32 | 15.94 | 11.48 | 22.05 | -15.34 | 119.49 | 66.16 | 250.93 | 0.9349 | -213.2 | 126.7 | |
| 0.00 | 0.61 | 0.00 | 0.83 | -15.43 | 119.16 | 65.83 | 250.76 | 0.9331 | -512.0 | -513.3 | |
| 0.00 | 0.88 | 0.00 | 1.14 | -15.36 | 118.14 | 64.81 | 250.59 | 0.9268 | -287.0 | -278.5 | |
| 0.00 | 0.26 | 0.00 | 0.36 | -16.82 | 118.76 | 65.43 | 249.21 | 0.9327 | 187.0 | 205.7 | |
| 0.00 | 6.31 | 0.00 | 8.44 | -16.81 | 118.38 | 65.04 | 249.12 | 0.9305 | -471.0 | -227.9 | |
| 3.59 | 7.36 | 4.71 | 9.65 | -17.11 | 117.83 | 64.50 | 248.67 | 0.9277 | -448.5 | -334.2 | |
| 0.00 | 1.58 | 0.00 | 1.97 | -16.14 | 116.80 | 63.47 | 249.42 | 0.9197 | -329.0 | -266.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
