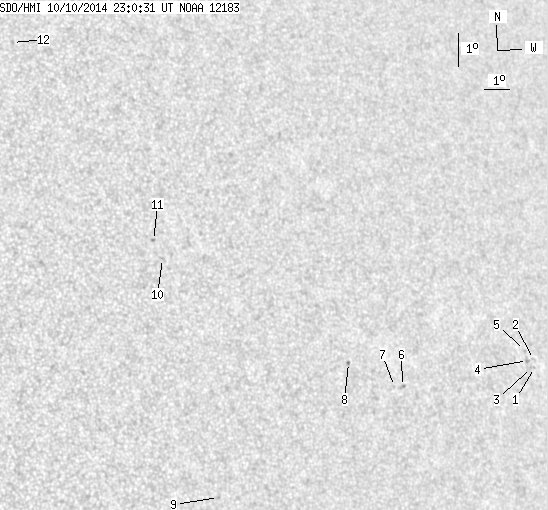

SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 16.03 | 0.00 | 10.74 | 12.27 | 95.24 | 41.91 | 282.16 | 0.6680 | -164.8 | -152.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.58 | 10.65 | 101.73 | 48.40 | 278.78 | 0.7459 | -559.0 | -517.1 | |
| 0.00 | 1.58 | 0.00 | 1.17 | 10.89 | 101.74 | 48.41 | 279.10 | 0.7461 | -355.0 | -320.0 | |
| 0.00 | 1.14 | 0.00 | 0.84 | 10.66 | 101.60 | 48.26 | 278.80 | 0.7444 | -650.0 | -551.8 | |
| 0.00 | 1.84 | 0.00 | 1.36 | 10.89 | 101.46 | 48.13 | 279.10 | 0.7429 | -716.0 | -592.7 | |
| 0.00 | 1.05 | 0.00 | 0.77 | 11.19 | 101.39 | 48.06 | 279.52 | 0.7422 | -403.0 | -396.7 | |
| 0.00 | 2.10 | 0.00 | 1.41 | 10.52 | 95.95 | 42.61 | 278.85 | 0.6760 | -732.0 | -600.3 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 10.55 | 95.62 | 42.29 | 278.90 | 0.6718 | -662.0 | -561.0 | |
| 0.00 | 1.31 | 0.00 | 0.85 | 11.39 | 93.89 | 40.56 | 280.33 | 0.6502 | 616.0 | 484.7 | |
| 0.00 | 1.14 | 0.00 | 0.69 | 7.69 | 88.39 | 35.05 | 274.59 | 0.5732 | -612.0 | -468.2 | |
| 0.00 | 1.75 | 0.00 | 1.05 | 14.97 | 87.32 | 33.99 | 287.53 | 0.5685 | 714.0 | 593.8 | |
| 0.00 | 1.40 | 0.00 | 0.84 | 15.54 | 87.09 | 33.76 | 288.58 | 0.5670 | 842.0 | 686.0 | |
| 0.00 | 1.40 | 0.00 | 0.83 | 21.86 | 83.17 | 29.84 | 301.55 | 0.5440 | 540.0 | 431.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
