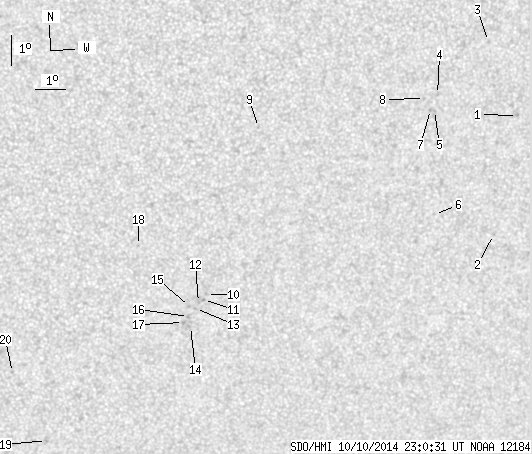

SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.87 | 0.00 | 13.46 | -21.07 | 70.94 | 17.60 | 212.08 | 0.5436 | -83.7 | -124.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-10 23:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.73 | -17.22 | 78.60 | 25.27 | 226.47 | 0.5645 | 783.0 | 674.4 | |
| 0.00 | 0.88 | 0.00 | 0.54 | -21.14 | 78.40 | 25.06 | 221.32 | 0.6007 | 626.0 | 537.7 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -14.77 | 77.28 | 23.95 | 228.40 | 0.5271 | 581.0 | 474.3 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -16.40 | 75.75 | 22.42 | 224.20 | 0.5269 | 692.0 | 567.4 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -16.92 | 75.71 | 22.38 | 223.45 | 0.5318 | 677.0 | 588.9 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -20.36 | 76.20 | 22.86 | 219.69 | 0.5726 | 641.0 | 498.6 | |
| 0.00 | 1.40 | 0.00 | 0.82 | -16.88 | 75.57 | 22.24 | 223.32 | 0.5300 | 731.0 | 561.7 | |
| 0.00 | 0.96 | 0.00 | 0.56 | -16.51 | 75.33 | 21.99 | 223.50 | 0.5237 | 809.0 | 608.9 | |
| 0.00 | 0.96 | 0.00 | 0.54 | -17.24 | 69.90 | 16.56 | 214.69 | 0.4803 | 704.0 | 592.5 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -22.77 | 68.75 | 15.41 | 207.02 | 0.5416 | -719.0 | -596.2 | |
| 0.00 | 1.40 | 0.00 | 0.83 | -22.94 | 68.66 | 15.33 | 206.74 | 0.5432 | -719.0 | -706.2 | |
| 0.00 | 1.31 | 0.00 | 0.77 | -23.04 | 68.51 | 15.17 | 206.42 | 0.5434 | -814.0 | -682.9 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -23.24 | 68.43 | 15.10 | 206.13 | 0.5456 | -726.0 | -622.3 | |
| 0.00 | 0.70 | 0.00 | 0.42 | -23.86 | 68.33 | 15.00 | 205.45 | 0.5529 | -608.0 | -562.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -23.17 | 68.22 | 14.89 | 205.88 | 0.5432 | -717.0 | -629.1 | |
| 0.00 | 1.75 | 0.00 | 1.04 | -23.51 | 68.22 | 14.89 | 205.59 | 0.5477 | -724.0 | -660.5 | |
| 0.00 | 1.58 | 0.00 | 0.93 | -23.72 | 68.08 | 14.74 | 205.20 | 0.5494 | -779.0 | -687.2 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -21.04 | 66.31 | 12.97 | 204.73 | 0.5029 | -690.0 | -573.1 | |
| 0.00 | 1.58 | 0.00 | 0.96 | -27.77 | 63.84 | 10.51 | 196.16 | 0.5820 | -707.0 | -583.4 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -25.31 | 62.48 | 9.14 | 195.41 | 0.5428 | -714.0 | -486.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
