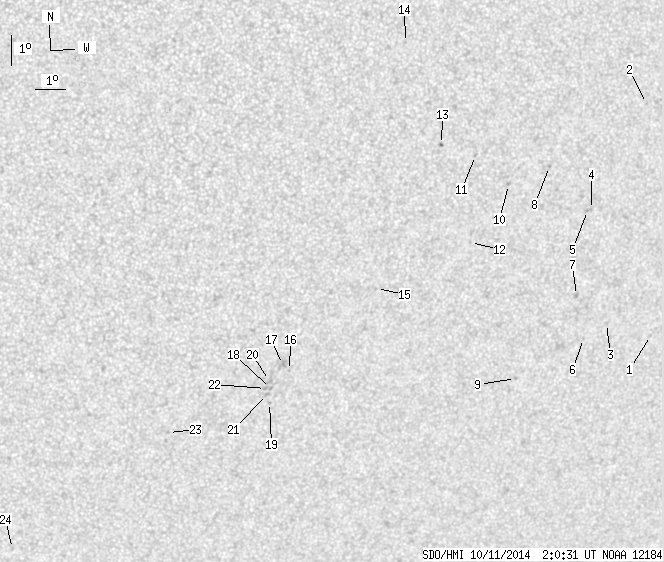

SDO HMI 2014-10-11 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 36.35 | 0.00 | 21.91 | -21.49 | 72.20 | 20.52 | 215.38 | 0.5711 | 127.5 | -43.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.88 | 0.00 | 0.57 | -22.56 | 81.56 | 29.88 | 224.54 | 0.6582 | 482.0 | 376.1 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -14.84 | 79.96 | 28.28 | 232.92 | 0.5762 | 545.0 | 471.4 | |
| 0.00 | 0.96 | 0.00 | 0.62 | -22.05 | 79.81 | 28.13 | 223.46 | 0.6376 | 573.0 | 374.5 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -18.19 | 78.54 | 26.85 | 226.91 | 0.5899 | 671.0 | 577.5 | |
| 0.00 | 1.40 | 0.00 | 0.86 | -18.22 | 78.40 | 26.72 | 226.73 | 0.5887 | 760.0 | 586.3 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -22.52 | 79.07 | 27.39 | 222.18 | 0.6352 | 551.0 | 488.6 | |
| 0.00 | 2.72 | 0.00 | 1.70 | -21.04 | 78.51 | 26.83 | 223.34 | 0.6161 | 756.0 | 550.1 | |
| 0.00 | 1.40 | 0.00 | 0.84 | -16.70 | 76.84 | 25.16 | 227.06 | 0.5584 | 777.0 | 590.2 | |
| 0.00 | 1.31 | 0.00 | 0.83 | -23.78 | 76.86 | 25.18 | 218.48 | 0.6280 | 617.0 | 528.5 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -17.22 | 75.50 | 23.82 | 224.81 | 0.5495 | 727.0 | 579.8 | |
| 0.00 | 1.31 | 0.00 | 0.76 | -16.23 | 74.25 | 22.57 | 224.64 | 0.5265 | 725.0 | 591.9 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -19.08 | 74.46 | 22.77 | 221.15 | 0.5581 | 654.0 | 449.4 | |
| 0.00 | 1.49 | 0.00 | 0.86 | -15.82 | 73.06 | 21.38 | 223.67 | 0.5099 | 786.0 | 720.7 | |
| 0.00 | 0.79 | 0.00 | 0.44 | -12.51 | 71.56 | 19.88 | 226.59 | 0.4588 | 644.0 | 553.3 | |
| 0.00 | 0.53 | 0.00 | 0.31 | -20.48 | 71.44 | 19.76 | 215.58 | 0.5463 | -668.0 | -522.5 | |
| 0.00 | 0.96 | 0.00 | 0.57 | -23.16 | 68.83 | 17.15 | 209.19 | 0.5582 | -595.0 | -437.3 | |
| 0.00 | 5.34 | 0.00 | 3.17 | -22.94 | 68.57 | 16.89 | 209.02 | 0.5536 | -866.0 | -661.7 | |
| 0.00 | 1.58 | 0.00 | 0.94 | -23.76 | 68.26 | 16.58 | 207.83 | 0.5617 | -780.0 | -643.1 | |
| 0.00 | 1.14 | 0.00 | 0.68 | -24.24 | 68.29 | 16.61 | 207.44 | 0.5679 | -482.0 | -481.0 | |
| 0.00 | 3.42 | 0.00 | 2.04 | -23.48 | 68.19 | 16.51 | 207.99 | 0.5577 | -450.0 | -626.6 | |
| 0.00 | 1.93 | 0.00 | 1.15 | -23.96 | 68.15 | 16.47 | 207.49 | 0.5635 | -689.0 | -565.8 | |
| 0.00 | 1.66 | 0.00 | 0.99 | -23.75 | 68.09 | 16.41 | 207.59 | 0.5605 | -808.0 | -661.3 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -25.18 | 64.96 | 13.28 | 201.88 | 0.5601 | -631.0 | -557.6 | |
| 0.00 | 1.49 | 0.00 | 0.92 | -29.23 | 60.00 | 8.32 | 192.32 | 0.5942 | -239.0 | -347.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
