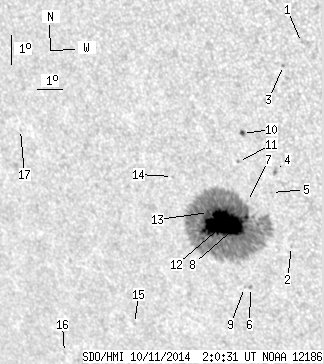

SDO HMI 2014-10-11 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 71.22 | 421.49 | 47.76 | 282.97 | -20.57 | 18.16 | -33.53 | 129.96 | 0.6769 | 906.8 | 287.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 02:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.70 | 0.00 | 0.43 | -14.45 | 22.24 | -29.44 | 125.43 | 0.5864 | -628.0 | -466.5 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -21.21 | 20.59 | -31.10 | 132.77 | 0.6583 | -599.0 | -491.1 | |
| 0.00 | 1.14 | 0.00 | 0.70 | -15.23 | 21.47 | -30.21 | 125.85 | 0.6012 | 630.0 | 569.7 | |
| 0.00 | 2.80 | 0.00 | 1.80 | -18.72 | 20.54 | -31.14 | 129.67 | 0.6386 | 846.0 | 715.8 | |
| 0.00 | 0.79 | 0.00 | 0.51 | -19.43 | 20.24 | -31.44 | 130.30 | 0.6473 | 714.0 | 586.6 | |
| 0.00 | 1.66 | 0.00 | 1.13 | -22.71 | 18.64 | -33.05 | 132.87 | 0.6887 | -824.0 | -663.7 | |
| 0.00 | 0.96 | 0.00 | 0.63 | -19.78 | 19.26 | -32.42 | 129.90 | 0.6600 | 254.0 | 295.9 | |
| 1.40 | 405.20 | 0.93 | 272.10 | -20.32 | 19.10 | -32.59 | 130.43 | 0.6658 | 1215.0 | 296.9 | |
| 0.00 | 0.79 | 0.00 | 0.54 | -22.72 | 18.40 | -33.28 | 132.69 | 0.6910 | -483.0 | -418.7 | |
| 1.31 | 2.37 | 0.84 | 1.52 | -17.53 | 19.56 | -32.12 | 127.30 | 0.6397 | 755.9 | 570.1 | |
| 0.00 | 1.14 | 0.00 | 0.74 | -18.47 | 19.22 | -32.47 | 128.22 | 0.6504 | 651.0 | 540.8 | |
| 66.85 | -8.00 | 44.87 | -8.00 | -20.62 | 18.15 | -33.54 | 130.00 | 0.6774 | 1199.9 | 999999 | |
| 1.66 | -8.00 | 1.12 | -8.00 | -20.25 | 17.66 | -34.02 | 129.17 | 0.6794 | 646.9 | 999999 | |
| 0.00 | 0.44 | 0.00 | 0.30 | -19.13 | 16.55 | -35.13 | 126.94 | 0.6826 | -451.0 | -500.0 | |
| 0.00 | 0.96 | 0.00 | 0.71 | -24.28 | 13.47 | -38.21 | 130.75 | 0.7466 | -578.0 | -420.0 | |
| 0.00 | 0.96 | 0.00 | 0.77 | -25.54 | 9.95 | -41.73 | 129.83 | 0.7844 | -404.0 | -310.2 | |
| 0.00 | 0.70 | 0.00 | 0.51 | -17.99 | 10.74 | -40.95 | 121.65 | 0.7346 | -361.0 | -330.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
