SDO HMI 2014-10-11 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.55 | 0.00 | 5.10 | -13.39 | 60.86 | 9.73 | 205.87 | 0.3787 | 309.7 | 484.7 | |
|
previous
or next observation for the same group /

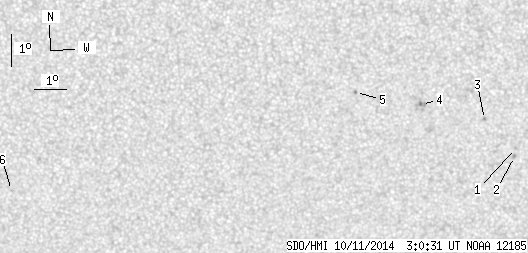

back to the solar disc SDO HMI 2014-10-11 03:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.57 | -14.19 | 64.09 | 12.96 | 212.20 | 0.4097 | 777.0 | 617.2 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -14.45 | 64.08 | 12.94 | 211.83 | 0.4130 | 803.0 | 716.6 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -13.24 | 63.06 | 11.93 | 211.37 | 0.3882 | 907.0 | 727.7 | |
| 0.00 | 4.03 | 0.00 | 2.14 | -12.72 | 61.07 | 9.94 | 207.59 | 0.3651 | 1014.0 | 821.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.30 | 59.01 | 7.87 | 202.97 | 0.3445 | -887.0 | -754.2 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -15.36 | 48.40 | -2.73 | 172.87 | 0.3713 | -756.0 | -576.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
