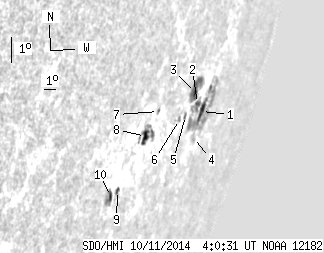

SDO HMI 2014-10-11 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.49 | 114.26 | 33.42 | 220.00 | -15.19 | 123.10 | 72.52 | 252.41 | 0.9661 | 65.8 | 71.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.22 | 55.99 | 13.26 | 119.96 | -15.15 | 124.81 | 74.23 | 252.78 | 0.9736 | 122.1 | 0.7 | |
| 1.75 | -1.00 | 3.54 | -1.00 | -14.81 | 124.04 | 73.46 | 252.98 | 0.9703 | 500.2 | 999999 | |
| 1.40 | 18.93 | 2.70 | 36.53 | -14.41 | 123.47 | 72.89 | 253.29 | 0.9676 | 651.2 | 391.9 | |
| 0.00 | 3.24 | 0.00 | 6.91 | -15.95 | 124.69 | 74.10 | 251.94 | 0.9737 | 197.0 | 151.5 | |
| 0.00 | 2.19 | 0.00 | 4.13 | -15.08 | 122.99 | 72.41 | 252.51 | 0.9662 | 526.0 | 409.6 | |
| 0.00 | 1.75 | 0.00 | 3.20 | -15.15 | 122.43 | 71.85 | 252.34 | 0.9638 | 531.0 | 484.9 | |
| 0.00 | 1.84 | 0.00 | 2.94 | -14.65 | 120.05 | 69.47 | 252.38 | 0.9520 | -76.0 | -69.3 | |
| 5.61 | 18.40 | 8.74 | 28.82 | -15.37 | 119.42 | 68.83 | 251.50 | 0.9496 | -193.4 | 8.0 | |
| 1.14 | 2.72 | 1.71 | 4.07 | -16.96 | 118.20 | 67.62 | 249.59 | 0.9451 | -276.9 | -145.5 | |
| 2.37 | 9.20 | 3.47 | 13.44 | -17.10 | 117.73 | 67.14 | 249.33 | 0.9428 | -490.3 | -399.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
