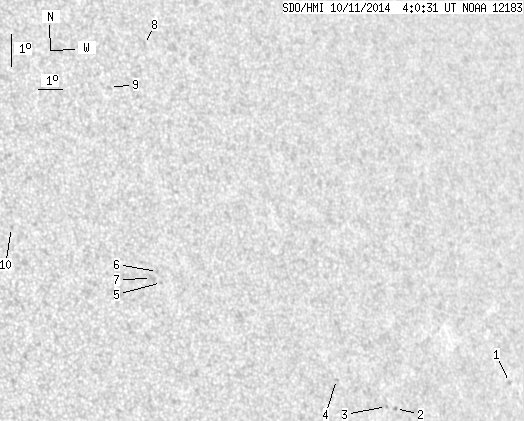

SDO HMI 2014-10-11 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.79 | 0.00 | 11.68 | 14.97 | 91.00 | 40.41 | 286.40 | 0.6543 | 218.0 | 183.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 04:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.57 | 10.82 | 101.64 | 51.05 | 278.95 | 0.7756 | -644.0 | -539.7 | |
| 0.00 | 1.49 | 0.00 | 1.05 | 10.46 | 96.30 | 45.72 | 278.62 | 0.7144 | -597.0 | -505.1 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 10.55 | 95.93 | 45.34 | 278.77 | 0.7099 | -593.0 | -583.5 | |
| 0.00 | 1.31 | 0.00 | 0.89 | 11.51 | 93.97 | 43.39 | 280.27 | 0.6864 | 630.0 | 522.5 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 14.89 | 87.58 | 36.99 | 286.54 | 0.6089 | 675.0 | 552.8 | |
| 0.00 | 1.40 | 0.00 | 0.87 | 15.24 | 87.49 | 36.91 | 287.12 | 0.6085 | 663.0 | 546.1 | |
| 0.00 | 4.29 | 0.00 | 2.66 | 15.04 | 87.22 | 36.63 | 286.88 | 0.6045 | 626.0 | 519.9 | |
| 0.00 | 2.19 | 0.00 | 1.42 | 22.18 | 88.80 | 38.22 | 297.42 | 0.6477 | 351.0 | 336.6 | |
| 0.00 | 1.58 | 0.00 | 0.99 | 20.94 | 87.00 | 36.42 | 296.36 | 0.6211 | 548.0 | 483.0 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 16.89 | 82.30 | 31.72 | 291.83 | 0.5440 | 521.0 | 430.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
