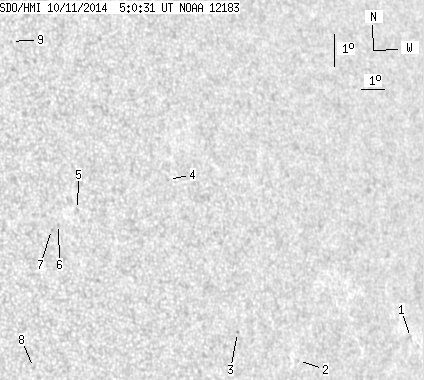

SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.42 | 0.00 | 5.66 | 13.34 | 92.22 | 42.19 | 283.50 | 0.6722 | 242.4 | 95.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 1.11 | 10.76 | 101.71 | 51.68 | 278.87 | 0.7824 | -554.0 | -499.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 10.49 | 96.42 | 46.39 | 278.65 | 0.7224 | -529.0 | -465.6 | |
| 0.00 | 1.23 | 0.00 | 0.84 | 11.52 | 93.98 | 43.94 | 280.25 | 0.6933 | 585.0 | 518.6 | |
| 0.00 | 0.53 | 0.00 | 0.35 | 16.31 | 92.17 | 42.14 | 287.49 | 0.6775 | 666.0 | 550.8 | |
| 0.00 | 1.05 | 0.00 | 0.67 | 15.66 | 88.29 | 38.26 | 287.44 | 0.6272 | 455.0 | 361.1 | |
| 0.00 | 0.96 | 0.00 | 0.60 | 15.25 | 87.45 | 37.42 | 287.02 | 0.6153 | 706.0 | 578.6 | |
| 0.00 | 0.53 | 0.00 | 0.33 | 15.12 | 87.15 | 37.12 | 286.89 | 0.6111 | 465.0 | 367.8 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 11.02 | 85.75 | 35.72 | 280.36 | 0.5847 | -200.0 | -264.9 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 20.93 | 87.01 | 36.98 | 296.10 | 0.6278 | 588.0 | 483.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
