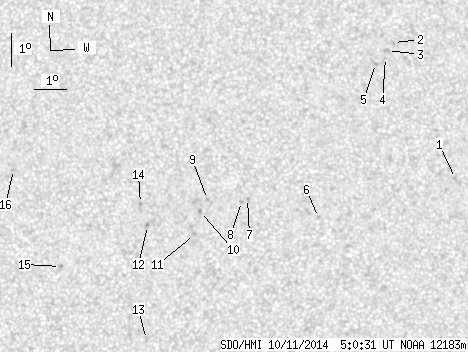

SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 22.40 | 0.00 | 11.33 | 14.48 | 56.29 | 6.25 | 327.63 | 0.1860 | 356.4 | 216.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.76 | 14.18 | 62.62 | 12.58 | 303.95 | 0.2557 | -787.0 | -632.4 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 18.36 | 60.90 | 10.86 | 320.01 | 0.2796 | -724.0 | -581.6 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 18.12 | 60.69 | 10.66 | 319.95 | 0.2744 | -946.0 | -779.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 17.91 | 60.62 | 10.58 | 319.62 | 0.2709 | -759.0 | -590.4 | |
| 0.00 | 1.75 | 0.00 | 0.90 | 17.73 | 60.29 | 10.25 | 320.04 | 0.2651 | -1034.0 | -741.3 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 13.09 | 58.28 | 8.24 | 311.12 | 0.1862 | 927.0 | 733.5 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 13.70 | 56.09 | 6.06 | 322.13 | 0.1678 | 823.0 | 700.5 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 13.61 | 55.91 | 5.87 | 322.66 | 0.1646 | 935.0 | 698.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 13.68 | 54.86 | 4.82 | 328.14 | 0.1554 | 846.0 | 657.3 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 13.32 | 54.63 | 4.60 | 328.06 | 0.1481 | 1069.0 | 855.1 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 12.63 | 54.43 | 4.40 | 326.51 | 0.1362 | 969.0 | 808.7 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 12.91 | 52.99 | 2.96 | 336.89 | 0.1287 | 909.0 | 758.5 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 9.49 | 52.92 | 2.89 | 319.54 | 0.0769 | 775.0 | 669.6 | |
| 0.00 | 0.96 | 0.00 | 0.48 | 13.57 | 52.79 | 2.75 | 340.16 | 0.1381 | 960.0 | 841.5 | |
| 0.00 | 1.49 | 0.00 | 0.74 | 11.69 | 50.32 | 0.28 | 357.14 | 0.0970 | 883.0 | 656.8 | |
| 0.00 | 1.66 | 0.00 | 0.83 | 14.61 | 48.87 | -1.16 | 7.61 | 0.1491 | 857.0 | 595.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
