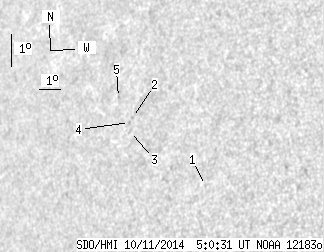

SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.46 | 0.00 | 3.47 | 13.35 | 359.29 | -50.75 | 77.76 | 0.7732 | -514.2 | -462.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 05:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.19 | 11.73 | 3.15 | -46.89 | 79.66 | 0.7289 | -408.0 | -456.0 | |
| 0.00 | 0.96 | 0.00 | 0.75 | 13.49 | 359.28 | -50.76 | 77.57 | 0.7735 | -609.0 | -518.3 | |
| 0.00 | 1.40 | 0.00 | 1.09 | 13.07 | 359.30 | -50.73 | 78.11 | 0.7730 | -519.0 | -481.3 | |
| 0.00 | 0.88 | 0.00 | 0.68 | 13.33 | 359.18 | -50.86 | 77.78 | 0.7745 | -637.0 | -555.3 | |
| 0.00 | 0.96 | 0.00 | 0.76 | 14.03 | 358.42 | -51.62 | 76.93 | 0.7830 | -398.0 | -298.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
