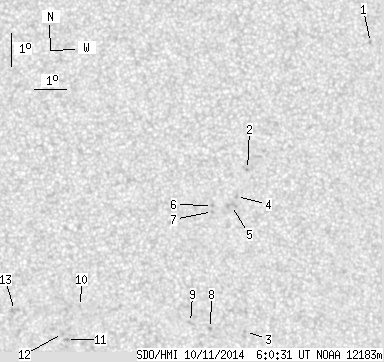

SDO HMI 2014-10-11 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.13 | 0.00 | 11.76 | 15.21 | 57.85 | 8.36 | 320.04 | 0.2144 | 84.5 | 52.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 06:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.79 | 21.55 | 64.65 | 15.16 | 317.89 | 0.3643 | -774.0 | -537.3 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 17.74 | 60.31 | 10.83 | 318.59 | 0.2717 | -948.0 | -790.2 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 12.83 | 59.99 | 10.50 | 303.63 | 0.2144 | 906.0 | 703.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 16.93 | 59.91 | 10.43 | 317.47 | 0.2573 | -842.0 | -584.0 | |
| 0.00 | 4.82 | 0.00 | 2.47 | 16.66 | 59.74 | 10.25 | 317.18 | 0.2520 | -542.0 | -682.6 | |
| 0.00 | 0.96 | 0.00 | 0.49 | 16.67 | 59.14 | 9.65 | 318.89 | 0.2453 | -868.0 | -739.6 | |
| 0.00 | 0.88 | 0.00 | 0.45 | 16.48 | 59.13 | 9.64 | 318.41 | 0.2430 | -808.0 | -666.4 | |
| 0.00 | 1.40 | 0.00 | 0.71 | 12.95 | 58.90 | 9.42 | 306.92 | 0.2003 | 895.0 | 732.2 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 13.14 | 58.29 | 8.80 | 309.52 | 0.1941 | 802.0 | 584.1 | |
| 0.00 | 0.61 | 0.00 | 0.31 | 13.67 | 54.90 | 5.41 | 325.12 | 0.1609 | 761.0 | 586.4 | |
| 0.00 | 1.75 | 0.00 | 0.88 | 12.68 | 54.44 | 4.95 | 323.57 | 0.1425 | 1028.0 | 817.7 | |
| 0.00 | 1.05 | 0.00 | 0.53 | 12.86 | 54.32 | 4.83 | 324.99 | 0.1438 | 860.0 | 742.9 | |
| 0.00 | 4.38 | 0.00 | 2.19 | 13.57 | 52.86 | 3.37 | 336.18 | 0.1420 | 628.0 | 674.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
