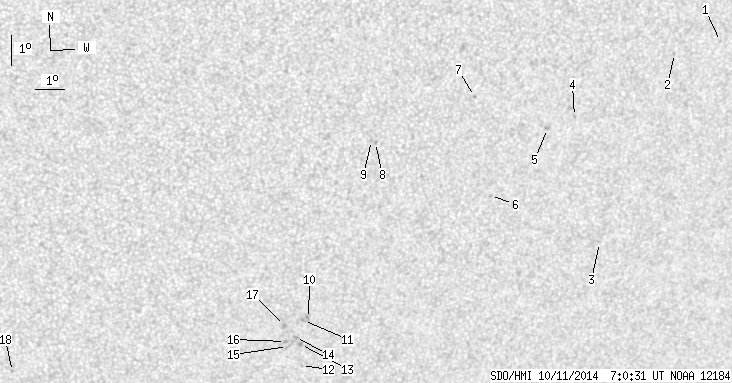

SDO HMI 2014-10-11 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 25.67 | 0.00 | 15.51 | -21.07 | 70.64 | 21.70 | 217.38 | 0.5756 | 14.4 | -95.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.50 | -14.59 | 81.83 | 32.89 | 237.29 | 0.6268 | 577.0 | 408.6 | |
| 0.00 | 0.61 | 0.00 | 0.38 | -14.88 | 80.20 | 31.25 | 235.57 | 0.6102 | 661.0 | 513.4 | |
| 0.00 | 0.88 | 0.00 | 0.56 | -20.96 | 78.61 | 29.66 | 226.25 | 0.6421 | 638.0 | 483.3 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -16.72 | 76.90 | 27.96 | 230.02 | 0.5883 | 686.0 | 543.5 | |
| 0.00 | 2.28 | 0.00 | 1.38 | -17.06 | 76.00 | 27.06 | 228.65 | 0.5816 | 694.0 | 598.2 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -19.17 | 74.34 | 25.40 | 224.12 | 0.5841 | 561.0 | 536.9 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -15.89 | 73.31 | 24.36 | 227.31 | 0.5419 | 589.0 | 564.5 | |
| 0.00 | 1.40 | 0.00 | 0.81 | -17.24 | 70.12 | 21.17 | 221.50 | 0.5227 | 657.0 | 526.2 | |
| 0.00 | 1.05 | 0.00 | 0.61 | -17.17 | 69.97 | 21.03 | 221.41 | 0.5205 | 482.0 | 431.1 | |
| 0.00 | 2.37 | 0.00 | 1.43 | -23.05 | 68.62 | 19.68 | 212.74 | 0.5751 | -782.0 | -649.2 | |
| 0.00 | 1.31 | 0.00 | 0.79 | -23.11 | 68.46 | 19.52 | 212.47 | 0.5746 | -735.0 | -626.6 | |
| 0.00 | 0.79 | 0.00 | 0.48 | -24.67 | 68.64 | 19.69 | 211.16 | 0.5941 | -586.0 | -507.4 | |
| 0.00 | 1.84 | 0.00 | 1.12 | -23.93 | 68.48 | 19.54 | 211.67 | 0.5844 | -674.0 | -533.5 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -23.68 | 68.27 | 19.33 | 211.64 | 0.5799 | -657.0 | -514.3 | |
| 0.00 | 2.28 | 0.00 | 1.39 | -23.99 | 68.04 | 19.10 | 211.05 | 0.5818 | -269.0 | -315.1 | |
| 0.00 | 1.66 | 0.00 | 1.01 | -23.81 | 67.94 | 19.00 | 211.09 | 0.5790 | -471.0 | -469.3 | |
| 0.00 | 2.28 | 0.00 | 1.37 | -23.25 | 67.83 | 18.88 | 211.48 | 0.5715 | -746.0 | -637.0 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -24.57 | 58.76 | 9.82 | 196.94 | 0.5346 | -365.0 | -300.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
