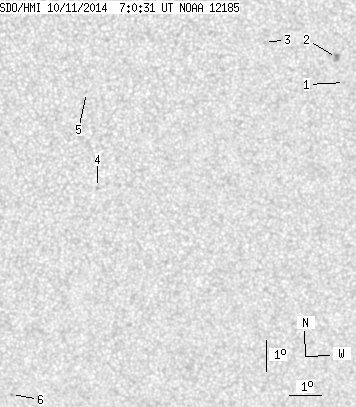

SDO HMI 2014-10-11 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.32 | 0.00 | 4.51 | -15.05 | 58.10 | 9.16 | 204.06 | 0.4010 | 151.3 | 506.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 07:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.61 | 0.00 | 0.33 | -13.57 | 61.52 | 12.58 | 212.31 | 0.3978 | 826.0 | 692.4 | |
| 0.00 | 4.21 | 0.00 | 2.26 | -12.77 | 61.23 | 12.29 | 212.83 | 0.3845 | 960.0 | 781.5 | |
| 0.00 | 0.61 | 0.00 | 0.33 | -12.24 | 58.96 | 10.01 | 208.44 | 0.3584 | -840.0 | -543.3 | |
| 0.00 | 1.31 | 0.00 | 0.71 | -16.80 | 53.89 | 4.95 | 191.98 | 0.3998 | 181.0 | 333.7 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -13.74 | 53.48 | 4.54 | 192.75 | 0.3499 | -777.0 | -560.6 | |
| 0.00 | 1.14 | 0.00 | 0.65 | -23.71 | 51.29 | 2.35 | 184.32 | 0.5011 | 558.0 | 552.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
