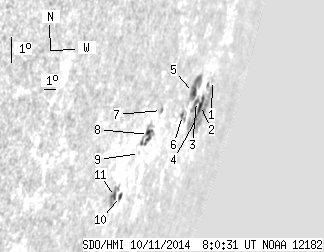

SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.85 | 103.66 | 39.35 | 228.33 | -15.11 | 122.90 | 74.51 | 252.84 | 0.9739 | 55.7 | 12.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.40 | 0.00 | 3.73 | -14.29 | 125.68 | 77.29 | 254.16 | 0.9835 | -344.0 | -313.2 | |
| 4.56 | 65.63 | 11.44 | 160.32 | -14.98 | 124.80 | 76.40 | 253.32 | 0.9811 | -72.8 | 56.6 | |
| 1.23 | -2.00 | 2.89 | -2.00 | -14.77 | 124.05 | 75.66 | 253.41 | 0.9785 | 419.7 | 999999 | |
| 1.05 | -2.00 | 2.60 | -2.00 | -15.38 | 124.72 | 76.32 | 252.91 | 0.9810 | 188.4 | 999999 | |
| 3.24 | -2.00 | 7.19 | -2.00 | -14.41 | 123.32 | 74.92 | 253.65 | 0.9756 | 585.2 | 999999 | |
| 0.88 | 5.43 | 1.86 | 11.71 | -15.06 | 122.64 | 74.25 | 252.87 | 0.9735 | 538.2 | 420.4 | |
| 0.35 | 1.49 | 0.63 | 2.68 | -14.63 | 120.01 | 71.61 | 252.83 | 0.9622 | -103.0 | -27.6 | |
| 4.21 | 15.51 | 7.31 | 26.81 | -15.31 | 119.28 | 70.88 | 251.99 | 0.9595 | -136.0 | -130.3 | |
| 0.00 | 0.26 | 0.00 | 0.45 | -15.87 | 118.87 | 70.47 | 251.33 | 0.9582 | -272.0 | -303.0 | |
| 1.14 | 2.72 | 1.90 | 4.53 | -17.17 | 118.17 | 69.78 | 249.86 | 0.9562 | -87.0 | 1.9 | |
| 2.19 | 11.22 | 3.53 | 18.10 | -17.10 | 117.58 | 69.18 | 249.80 | 0.9533 | -548.9 | -382.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
