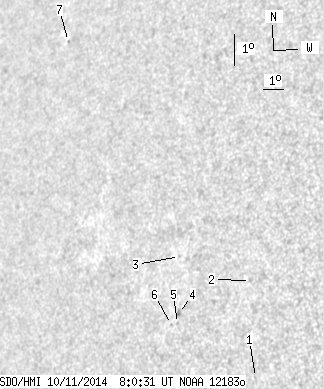

SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.88 | 0.00 | 5.97 | 14.47 | 359.12 | -49.27 | 76.21 | 0.7568 | -487.4 | -455.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.26 | 0.00 | 0.18 | 11.69 | 3.19 | -45.20 | 79.58 | 0.7088 | -534.0 | -518.3 | |
| 0.00 | 1.84 | 0.00 | 1.31 | 14.57 | 2.29 | -46.11 | 75.65 | 0.7223 | -393.0 | -350.0 | |
| 0.00 | 1.05 | 0.00 | 0.80 | 15.05 | 358.86 | -49.53 | 75.42 | 0.7615 | -496.0 | -391.4 | |
| 0.00 | 2.54 | 0.00 | 1.91 | 13.34 | 359.31 | -49.08 | 77.63 | 0.7550 | -694.0 | -606.0 | |
| 0.00 | 0.88 | 0.00 | 0.66 | 13.04 | 359.35 | -49.05 | 78.03 | 0.7545 | -606.0 | -526.1 | |
| 0.00 | 0.70 | 0.00 | 0.53 | 12.99 | 359.08 | -49.32 | 78.11 | 0.7574 | -497.0 | -429.4 | |
| 0.00 | 0.61 | 0.00 | 0.58 | 21.01 | 350.23 | -58.17 | 69.04 | 0.8514 | -192.0 | -208.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
