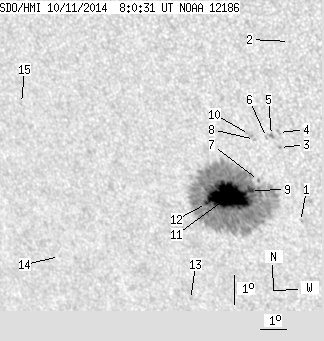

SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.01 | 438.64 | 42.02 | 283.65 | -20.53 | 18.12 | -30.28 | 132.67 | 0.6443 | 1003.9 | 303.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 08:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.28 | -21.30 | 20.56 | -27.83 | 135.92 | 0.6276 | -568.0 | -598.8 | |
| 0.00 | 0.96 | 0.00 | 0.58 | -15.36 | 21.21 | -27.18 | 128.87 | 0.5680 | 560.0 | 437.2 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -18.85 | 20.28 | -28.11 | 132.63 | 0.6083 | 794.0 | 623.2 | |
| 0.00 | 1.93 | 0.00 | 1.19 | -18.36 | 20.34 | -28.06 | 132.05 | 0.6034 | 748.0 | 633.0 | |
| 0.00 | 2.37 | 0.00 | 1.47 | -18.47 | 20.07 | -28.33 | 131.93 | 0.6072 | 852.0 | 701.8 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -18.55 | 19.87 | -28.52 | 131.84 | 0.6098 | 626.0 | 598.6 | |
| 0.00 | 1.23 | 0.00 | 0.78 | -20.00 | 19.30 | -29.09 | 133.11 | 0.6282 | 787.0 | 733.9 | |
| 0.00 | 1.05 | 0.00 | 0.66 | -18.63 | 19.42 | -28.97 | 131.52 | 0.6152 | 804.0 | 645.6 | |
| 4.38 | 423.56 | 2.80 | 274.09 | -20.35 | 18.93 | -29.46 | 133.20 | 0.6348 | 1240.2 | 296.8 | |
| 0.00 | 2.98 | 0.00 | 1.87 | -18.48 | 19.27 | -29.12 | 131.17 | 0.6155 | 589.0 | 554.4 | |
| 60.37 | -9.00 | 39.05 | -9.00 | -20.60 | 18.07 | -30.33 | 132.70 | 0.6454 | 1181.4 | 999999 | |
| 0.26 | -9.00 | 0.17 | -9.00 | -20.88 | 17.18 | -31.21 | 132.25 | 0.6564 | 722.3 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.36 | -24.23 | 15.69 | -32.70 | 134.85 | 0.6973 | 504.0 | 423.5 | |
| 0.00 | 0.44 | 0.00 | 0.32 | -23.07 | 10.80 | -37.59 | 129.80 | 0.7328 | -533.0 | -458.6 | |
| 0.00 | 1.23 | 0.00 | 0.85 | -17.98 | 10.75 | -37.65 | 123.70 | 0.7006 | -382.0 | -358.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
