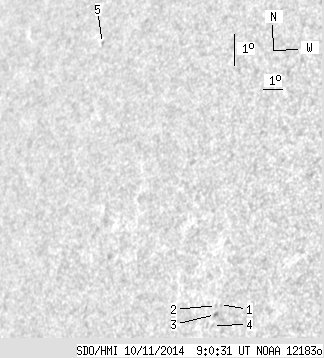

SDO HMI 2014-10-11 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.06 | 0.00 | 4.83 | 16.07 | 356.19 | -51.66 | 74.51 | 0.7827 | -542.6 | -449.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.39 | 13.67 | 359.48 | -48.37 | 77.13 | 0.7473 | -472.0 | -559.7 | |
| 0.00 | 0.88 | 0.00 | 0.65 | 13.63 | 359.35 | -48.50 | 77.19 | 0.7487 | -531.0 | -464.9 | |
| 0.00 | 2.02 | 0.00 | 1.50 | 13.35 | 359.38 | -48.47 | 77.55 | 0.7482 | -778.0 | -634.7 | |
| 0.00 | 0.79 | 0.00 | 0.59 | 13.02 | 359.33 | -48.52 | 78.01 | 0.7485 | -533.0 | -452.3 | |
| 0.00 | 1.84 | 0.00 | 1.70 | 21.00 | 350.31 | -57.54 | 68.98 | 0.8460 | -399.0 | -254.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
