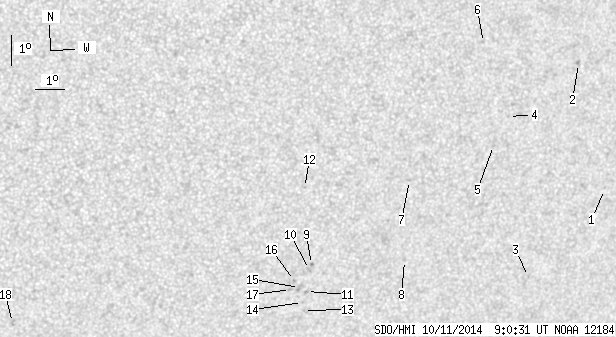

SDO HMI 2014-10-11 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 24.55 | 0.00 | 15.00 | -22.20 | 69.67 | 21.82 | 216.13 | 0.5880 | -152.7 | -217.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 09:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.44 | 0.00 | 0.29 | -20.97 | 78.66 | 30.81 | 227.29 | 0.6532 | 447.0 | 494.6 | |
| 0.00 | 2.02 | 0.00 | 1.24 | -16.72 | 76.88 | 29.03 | 231.06 | 0.5997 | 714.0 | 601.6 | |
| 0.00 | 1.14 | 0.00 | 0.75 | -23.79 | 76.49 | 28.64 | 222.01 | 0.6576 | 59.0 | 101.2 | |
| 0.00 | 0.96 | 0.00 | 0.59 | -18.33 | 74.65 | 26.81 | 226.72 | 0.5903 | 590.0 | 447.1 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -19.26 | 74.28 | 26.43 | 225.13 | 0.5952 | 511.0 | 434.0 | |
| 0.00 | 0.79 | 0.00 | 0.47 | -15.86 | 73.41 | 25.56 | 228.71 | 0.5545 | 833.0 | 657.8 | |
| 0.00 | 1.05 | 0.00 | 0.64 | -20.29 | 71.50 | 23.65 | 220.76 | 0.5785 | -610.0 | -431.5 | |
| 0.00 | 1.23 | 0.00 | 0.76 | -23.00 | 71.80 | 23.95 | 217.99 | 0.6093 | 501.0 | 329.3 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -22.99 | 68.52 | 20.67 | 214.08 | 0.5822 | -804.0 | -655.6 | |
| 0.00 | 2.37 | 0.00 | 1.44 | -23.16 | 68.48 | 20.63 | 213.85 | 0.5838 | -805.0 | -646.4 | |
| 0.00 | 1.66 | 0.00 | 1.02 | -23.92 | 68.50 | 20.65 | 213.10 | 0.5925 | -604.0 | -541.4 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -20.36 | 67.90 | 20.05 | 216.14 | 0.5471 | 565.0 | 508.5 | |
| 0.00 | 0.96 | 0.00 | 0.60 | -24.58 | 68.51 | 20.66 | 212.46 | 0.6001 | -518.0 | -472.3 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -24.30 | 68.42 | 20.57 | 212.63 | 0.5962 | -616.0 | -516.2 | |
| 0.00 | 2.89 | 0.00 | 1.77 | -23.77 | 68.23 | 20.38 | 212.92 | 0.5888 | -651.0 | -569.0 | |
| 0.00 | 1.23 | 0.00 | 0.75 | -23.52 | 68.02 | 20.17 | 212.90 | 0.5843 | -760.0 | -653.8 | |
| 0.00 | 1.58 | 0.00 | 0.96 | -23.83 | 67.93 | 20.08 | 212.47 | 0.5871 | -770.0 | -597.7 | |
| 0.00 | 2.54 | 0.00 | 1.49 | -24.67 | 58.55 | 10.70 | 198.29 | 0.5397 | -830.0 | -552.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
