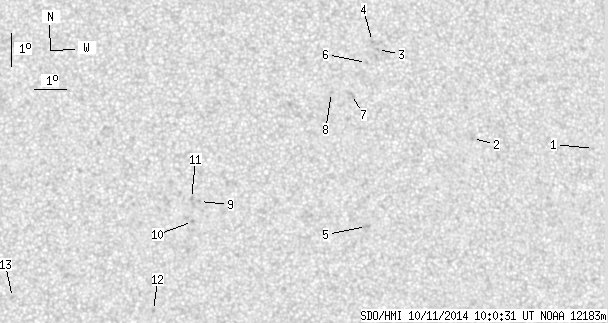

SDO HMI 2014-10-11 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 19.44 | 0.00 | 9.95 | 14.71 | 58.33 | 11.03 | 310.97 | 0.2418 | -35.5 | 12.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-10-11 10:00:31 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | 14.92 | 67.49 | 20.19 | 295.52 | 0.3711 | -739.0 | -599.9 | |
| 0.00 | 1.31 | 0.00 | 0.69 | 15.35 | 63.58 | 16.27 | 301.33 | 0.3178 | -711.0 | -513.5 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 18.15 | 60.73 | 13.43 | 313.72 | 0.3067 | -868.0 | -754.2 | |
| 0.00 | 0.96 | 0.00 | 0.50 | 18.40 | 60.59 | 13.29 | 314.62 | 0.3077 | -854.0 | -664.8 | |
| 0.00 | 2.98 | 0.00 | 1.52 | 12.79 | 60.03 | 12.72 | 298.90 | 0.2465 | 824.0 | 672.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | 17.76 | 60.34 | 13.04 | 313.54 | 0.2978 | -923.0 | -770.1 | |
| 0.00 | 3.42 | 0.00 | 1.76 | 16.79 | 59.79 | 12.49 | 312.17 | 0.2806 | -719.0 | -642.4 | |
| 0.00 | 1.05 | 0.00 | 0.54 | 16.87 | 59.16 | 11.86 | 313.81 | 0.2737 | -771.0 | -604.8 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 13.64 | 54.85 | 7.54 | 315.92 | 0.1842 | 752.0 | 595.8 | |
| 0.00 | 1.40 | 0.00 | 0.70 | 13.05 | 54.61 | 7.31 | 314.39 | 0.1742 | 906.0 | 700.9 | |
| 0.00 | 1.93 | 0.00 | 0.97 | 13.74 | 54.60 | 7.30 | 317.21 | 0.1825 | 844.0 | 659.0 | |
| 0.00 | 1.31 | 0.00 | 0.66 | 10.39 | 53.34 | 6.04 | 305.87 | 0.1283 | 898.0 | 645.0 | |
| 0.00 | 1.05 | 0.00 | 0.52 | 10.81 | 49.04 | 1.74 | 339.92 | 0.0874 | 900.0 | 702.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
